Fractal Design FD-C-MES2A-06 Meshify 2 Rgb Black FD-C-MES2A-06

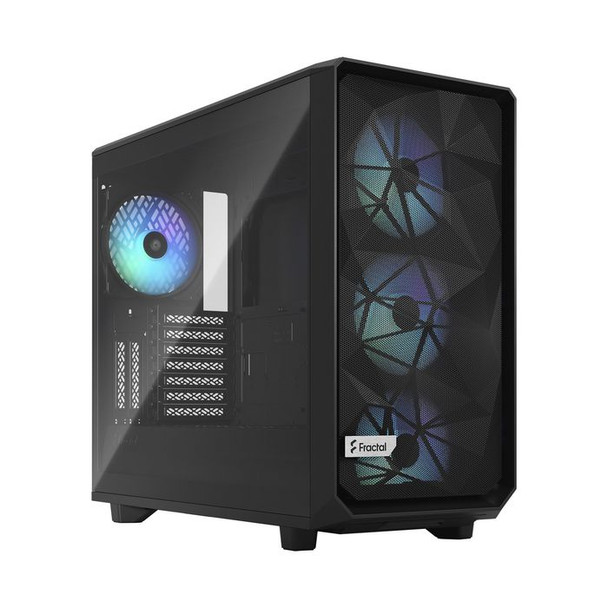

The Meshify 2 RGB is a high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a front with USB-C, hinged mesh panel and removable nylon filter. The flexible dual-layout interior supports large storage arrays and multi-radiator setups that makes cooling a breeze.

Refined airflow
- Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and four preinstalled Aspect 14 RGB PWM fans
- Repositioned front fan mounting sets a wider stage for light and color
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic

Detachable front filter
- Hinged removable mesh front panel and tether-free bezel for easier access to front fan mounts
- Front nylon filter that can be removed for increased airflow
- Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access

Light and color
Comes with 4x Aspect 14 RGB PWM fans pre-installed

Superlative storage
- Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
- Transformable interior design utilizing a movable wall for enhancing custom builds
- The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
- Tool-less, top-latching side panels allow quick access while preventing accidental drops

Extremely flexible
- Support for radiators up to 360 mm in front, 360 mm up top, or 280 mm in the base in the default Open Layout
- Easily holds large motherboards up to and including 285 mm E-ATX
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
- Chassis opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing

Type-C Interface
- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Built in RGB controller on the front/top I/O with iconic Fractal Northern Lights effect

Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Versatile Multibracket
Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount

Cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board

Cooling



Bottom fans diameters supported



120, 140


Bottom radiator sizes supported



240


Front fans diameters supported



120, 140


Front fans installed



3x 140 mm


Front radiator sizes supported



280, 360


Number of bottom fans supported (max)



2


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



3


Rear fans diameters supported



120, 140


Rear fans installed



1x 140 mm


Rear radiator sizes supported



120


Top fans diameters supported



120, 140


Top radiator sizes supported



280, 360


Design



Anti-dust filter



Yes


Cable management



Yes


Illumination



Yes


Illumination colour



Multi


Illumination location



Case fans


Material



Steel, Tempered glass


Maximum CPU cooler height



18.5 cm


Maximum graphics card length



45 cm


Maximum PSU length



25 cm


Number of 2.5" bays



14


Number of 3.5" bays



4


Number of expansion slots



9


On/off button



Yes


Product colour



Black


RGB control button



Yes


Side window



Yes


Supported motherboard form factors



ATX, EATX, micro ATX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



54 cm


Gross Weight (Package, kg)



14.43 kg


Height (package,cm)



64 cm


Width (package,cm)



33 cm


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Power supply included



No


Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



11.1 kg


Product Depth



54.2 cm


Product Height



47.4 cm


Product Width



24 cm


Storage



SSD form factor



2.5"


Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)
