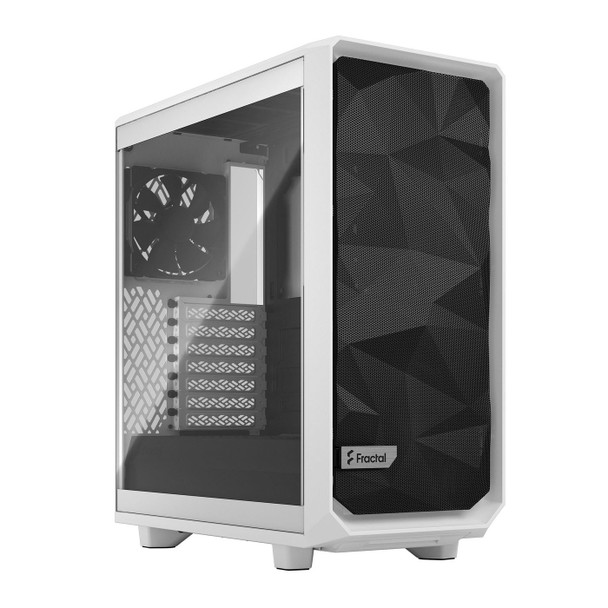

Fractal Design FD-C-MES2C-05 Meshify 2 Compact Tower White FD-C-MES2C-05

Removable front filter
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- New front nylon filter that can be removed for increased airflow

Robust cooling
- Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
- Open interior layout creates a smooth airflow path from intake to exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)

Fully featured
- Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5�/3.5� drives and up to four SSDs (two SSD brackets included)
- Improved cable routing with three integrated cable alignment clips and six velcro straps

Top priority access
The fully removable top panel opens to provide excellent interior access

Spaciously compact
Clever layout enables the capacity of much larger cases

Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Smooth and quiet operation
The sturdy steel drive trays are vibration-damped by cushioning rubber grommets

Full length shroud
A full-length power supply shroud readily conceals the drive cage and excess cabling

Cooling



Bottom fans diameters supported



120


Front fans diameters supported



120, 140


Front fans installed



2x 140 mm


Front radiator sizes supported



280, 360


Number of bottom fans supported (max)



1


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



2


Rear fans diameters supported



120


Rear fans installed



1x 120 mm


Rear radiator sizes supported



120


Top fans diameters supported



120, 140


Top radiator sizes supported



240


Design



Anti-dust filter



Yes


Cable management



Yes


Form factor



Tower


Material



Steel, Tempered glass


Maximum CPU cooler height



16.9 cm


Maximum graphics card length



36 cm


Maximum PSU length



20 cm


Number of 2.5" bays



4


Number of 3.5" bays



2


Number of expansion slots



7


On/off button



Yes


Product colour



White


Reset button



Yes


Side window



Yes


Suitable for



Gaming


Supported motherboard form factors



ATX, micro ATX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



54.2 cm


Gross Weight (Package, kg)



10.53 kg


Height (package,cm)



55.4 cm


Width (package,cm)



32 cm


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Power supply included



No


Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



8.1 kg


Product Depth



42.4 cm


Product Height



47.5 cm


Product Width



21 cm


Storage



Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)
