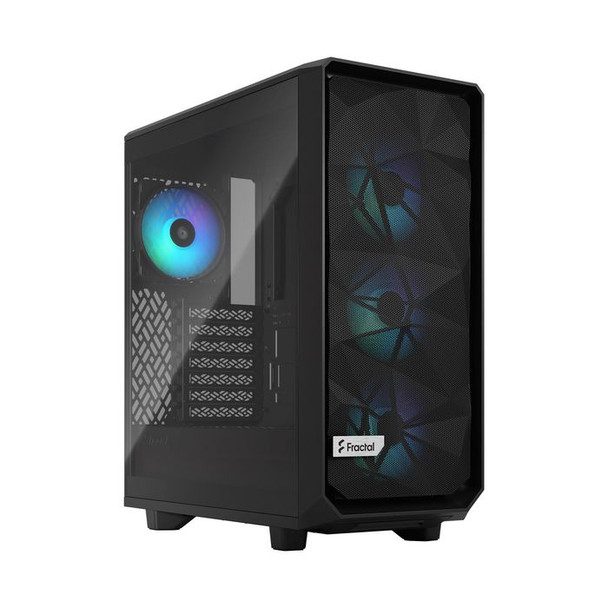

Fractal Design FD-C-MES2C-06 Meshify 2 Compact Rgb Black FD-C-MES2C-06

Refined airflow
- Repositioned front fan mounting sets a wider stage for light and color
- Install up to 7x 120 mm or 4x 140 mm fans (4x 120 mm Aspect 12 RGB PWM fans included)
- Open interior layout creates a smooth airflow path from front intake to rear exhaust

Detachable front filter
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Front nylon filter that can be removed for increased airflow
- Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access

Light and color
Comes with 4x Aspect 12 RGB PWM fans pre-installed

Extremely flexible
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Full length power supply shroud with two-part removable cover conceals drive cage and excess cabling for smooth airflow and a clean interior
- Chassis opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing

Type-C Interface
- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Built in RGB controller on the front/top I/O with iconic Fractal Northern Lights effect

Bolt-free glass
- Seamlessly integrated tempered glass panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5�/3.5� drives and up to four SSDs (two SSD brackets included)
- Seven bridgeless expansion slots ensure obstruction-free connections

Top priority access
Fully removable top panel and top fan bracket opens to provide excellent interior access and easy cable routing

Cooling



Bottom fans diameters supported



120


Bottom radiator sizes supported



120


Front fans diameters supported



120, 140


Front fans installed



3x 120 mm


Front radiator sizes supported



60, 120, 140, 200, 240, 280, 360


Number of bottom fans supported (max)



1


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



2


Rear fans diameters supported



120


Rear fans installed



1x 120 mm


Rear radiator sizes supported



120


Top fans diameters supported



120, 140


Top radiator sizes supported



120, 140, 180, 240


Design



Anti-dust filter



Yes


Cable management



Yes


Illumination



Yes


Illumination location



Case fans


Material



Steel, Tempered glass


Maximum CPU cooler height



16.9 cm


Maximum graphics card length



34.5 cm


Maximum PSU length



16.5 cm


Number of 2.5" bays



4


Number of 3.5" bays



2


Number of expansion slots



7


On/off button



Yes


Product colour



Black


RGB control button



Yes


Side window



Yes


Supported motherboard form factors



ATX, micro ATX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Package dimensions



Depth (package,cm)



54.2 cm


Gross Weight (Package, kg)



6.5 kg


Height (package,cm)



55.4 cm


Width (package,cm)



32 cm


Packaging content



Manual



Yes


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Power supply included



No


Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



5 kg


Product Depth



42.4 cm


Product Height



47.5 cm


Product Width



21 cm


Storage



SSD form factor



2.5"


Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)
