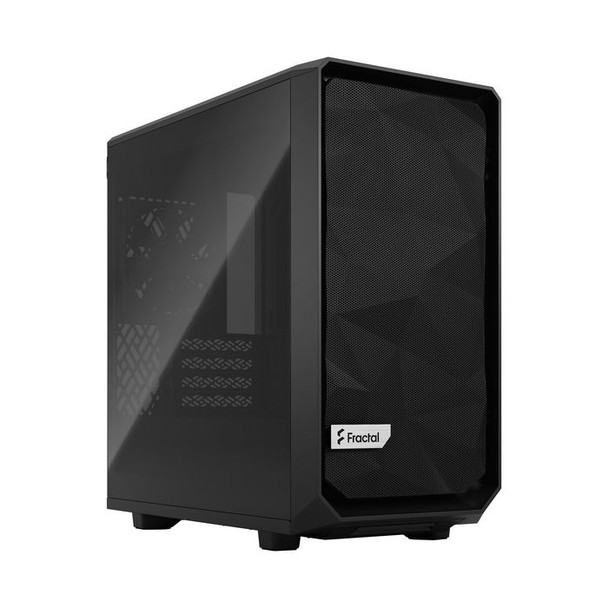

Fractal Design FD-C-MES2M-01 Meshify 2 Mini Black FD-C-MES2M-01

Slick and streamlined
- Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
- Room for GPUs up to 306 mm long including front fans with 331 mm total space
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support

Detachable front filter
- Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
- Double layered front filter with detachable nylon for increased airflow

Refined airflow
- The open interior layout creates a smooth airflow path from intake to rear exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 GP fans included)

Bolt-free glass
Seamless, top-latching tempered glass panels make for a stylish exterior

All access
- The fully removable top panel and fan bracket offers excellent interior access and easy cable routing
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access

More in store
- Flexible storage options with two HDD/SSD drive trays and four dedicated SSD mounts (2 brackets included)
- Integrated cable guides with cable straps further simplify cable management behind the board

Type-C Interface
USB Type-C front I/O offers quick access to fast charging and speeds up to 10 Gbps

Cooling



Bottom fans diameters supported



120


Bottom radiator fan sizes supported



120


Front fans diameters supported



120, 140


Front fans installed



1x 140 mm


Front radiator sizes supported



60, 120, 140, 200, 240, 280


Number of bottom fans supported (max)



1


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



2


Rear fans diameters supported



120


Rear fans installed



1x 120 mm


Rear radiator sizes supported



120


Top fans diameters supported



120, 140


Top radiator sizes supported



120, 140, 180, 240


Design



Anti-dust filter



Yes


Cable management



Yes


Material



Steel, Tempered glass


Maximum CPU cooler height



16.7 cm


Maximum graphics card length



33.1 cm


Maximum PSU length



20 cm


Number of 2.5" bays



4


Number of 3.5" bays



2


Number of expansion slots



4


On/off button



Yes


Product colour



Black


Reset button



Yes


Side window



Yes


Supported motherboard form factors



DTX, micro ATX, Mini-DTX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Package dimensions



Depth (package,cm)



45.7 cm


Gross Weight (Package, kg)



8.61 kg


Height (package,cm)



46.2 cm


Width (package,cm)



27.7 cm


Packaging content



Manual



Yes


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Power supply included



No


Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



6.62 kg


Product Depth



39.6 cm


Product Height



40.6 cm


Product Width



20.5 cm


Storage



SSD form factor



2.5"


Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)
