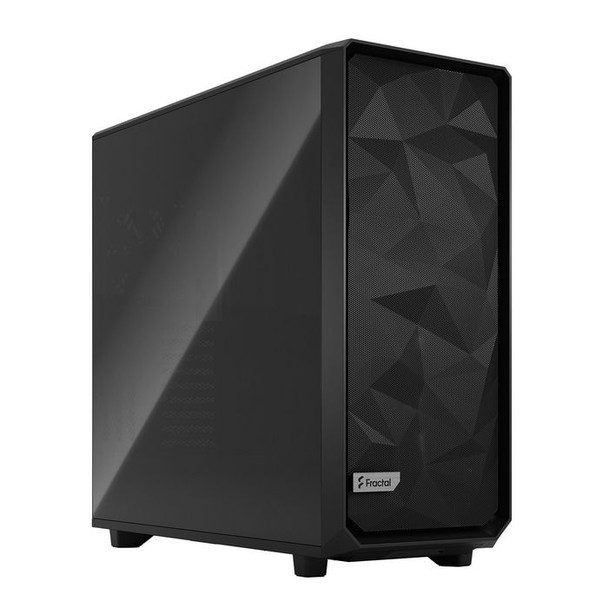

Fractal Design FD-C-MES2X-01 Meshify 2 Xl Dark Tempered FD-C-MES2X-01

Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.

Detachable front filter
- The nylon filter is easily removed from the hinged mesh panel for increased airflow
- Tether-free bezel for easier access to front fan mounts
- Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)

Superlative storage
- Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
- The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
- Tool-less, top-latching panels allow quick access while preventing accidental drops

Flexible dual-layout design
- Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
- Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
- An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB

Open and interchangeable
Remove the entire top to build and route with zero hindrance.

Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10Gbps

Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects 3x PWM fans and 6x 3-pin fans

Versatile multibrackets
The included Multibrackets lets you convert unused fan positions to HDD, SSD or pump mounts

Easy cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board

Cooling



Bottom fans diameters supported



120, 140


Front fans diameters supported



120, 140


Front fans installed



2x 140 mm


Front radiator sizes supported



420, 480


Number of bottom fans supported (max)



2


Number of front fans supported (max)



4


Number of rear fans supported (max)



1


Number of top fans supported (max)



4


Rear fans diameters supported



120, 140


Rear fans installed



1x 140 mm


Rear radiator sizes supported



120


Top fans diameters supported



120, 140


Top radiator sizes supported



420, 480


Design



Anti-dust filter



Yes


Cable management



Yes


Form factor



Tower


Material



Steel, Tempered glass


Maximum CPU cooler height



18.5 cm


Maximum graphics card length



35.9 cm


Maximum PSU length



25 cm


Number of 2.5" bays



2


Number of 3.5" bays



6


Number of expansion slots



12


Number of storage drives supported



23


On/off button



Yes


Product colour



Black


Reset button



Yes


Side window



Yes


Suitable for



Gaming


Supported motherboard form factors



ATX, EATX, micro ATX, Mini-ITX, SSI CEB


Tempered glass panel(s)



Yes


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



65.1 cm


Gross Weight (Package, kg)



18.33 kg


Height (package,cm)



68.4 cm


Width (package,cm)



33 cm


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Power supply included



No


Supported power supply form factors



ATX


Product dimensions



Net Weight (Product, kg)



14.1 kg


Product Depth



60 cm


Product Height



56.6 cm


Product Width



24 cm


Storage



HDD/SSD combo cage



Yes


Number of HDDs supported



18


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)
