Fractal Design
Fractal Design FD-CA-DEF-NANO-S-BK-W Define Nano S - Window Mini FD-CA-DEF-NANO-S-BK-W
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- FD-CA-DEF-NANO-S-BK-W
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description

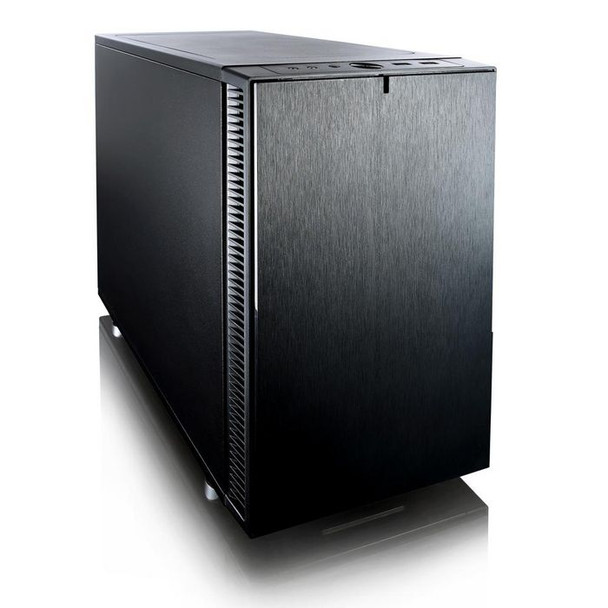

The Define Nano S is an ITX case that features compatibility with high end, full-size components, superior sound dampening, and an ATX-like layout.
The case includes two Dynamic Series fans with both bottom and front intakes protected by easy-to-clean, removable dust filters.
With its mounting capabilities for simultaneous radiators and unobstructed airflow path, the Define Nano S can cool enthusiast-level components.
Equipped with Fractal Design�s signature ModuVent� technology on the top vents and sound dampening throughout, the Define Nano S can run a powerful system quietly, a hallmark of the Define series.
Cooling
Bottom fans diameters supported
120
Front fans diameters supported
120, 140
Front fans installed
1x 140 mm
Front radiator sizes supported
120, 140, 240, 280
Number of bottom fans supported (max)
1
Number of front fans supported (max)
2
Number of rear fans supported (max)
1
Number of top fans supported (max)
2
Rear fans diameters supported
120
Rear fans installed
1x 120 mm
Rear radiator sizes supported
120
Top fans diameters supported
120, 140
Top radiator sizes supported
120, 240
Design
Anti-dust filter
Yes
Cable management
Yes
Form factor
Mini Tower
LED indicators
Y, Yes
Maximum CPU cooler height
16 cm
Maximum graphics card length
31.5 cm
Maximum PSU length
16 cm
Number of 2.5" bays
2
Number of 3.5" bays
2
Number of expansion slots
2
Number of internal 3.5" bays
2
Product colour
Black
Reset button
Yes
Side window
Yes
Supported motherboard form factors
ITX
Type
PC
Logistics data
Harmonized System (HS) code
84733080
Other features
Volume
26.8 L
Package dimensions
Depth (package,cm)
42 cm
Gross Weight (Package, kg)
5.98 kg
Height (package,cm)
48.5 cm
Width (package,cm)
27.5 cm
Packaging content
Manual
Yes
Ports & interfaces
Audio input
Y
Audio output
Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Power supply
Power supply included
No
Power supply location
Bottom
Supported power supply form factors
ATX
Product dimensions
Net Weight (Product, kg)
4.6 kg
Product Depth
40 cm
Product Height
33 cm
Product Width
20.3 cm
Storage
Supported HDD sizes
2.5, 3.5
Vendor information
Brand Name
Fractal Design
Warranty
1 Year(s)
