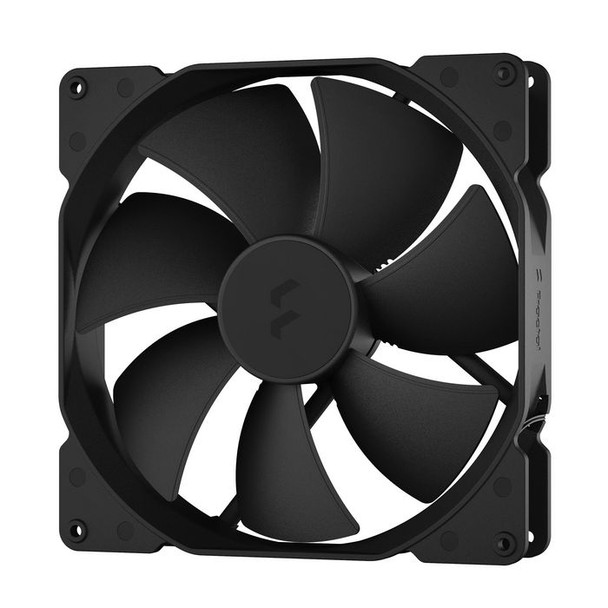

Fractal Design FD-FAN-DYN-X2-GP18-PWM-BK Dynamic X2 Gp-18 Pwm Computer FD-FAN-DYN-X2-GP18-PWM-BK

The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.

Optimized fan geometry
- Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
- Trip Wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quieter fan environment
- Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern

High-grade LLS bearing
Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability

Notched blade design
- Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts
- Aerodynamic stator struts with embedded wiring helps reduce noise and turbulence
- Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile

Design



Fan connector



4-pin


Number of fan blades



7


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Depth (package,cm)



18.2 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



4 cm


Width (package,cm)



22.7 cm


Packaging content



Number of screws



12


Package type



Hanging box


Screws included



Yes


Performance



Airflow



261.29 m�/hr


Bearing type



Sleeve bearing


Compatible processor series



Not supported


Fan diameter



18 cm


Maximum air pressure



2.26 mmH2O


Maximum airflow



153.7 cfm


Mean time between failures (MTBF)



90000 Hour


Minimum air pressure



0.4 mmH2O


Minimum airflow (imperial)



44.9 cfm


Noise level (high speed)



35.4 dB


Noise level (low speed)



16 dB


Pulse-width modulation (PWM) support



Yes


Quantity per pack



1 pc(s)


Rotational speed (max)



1200 RPM


Rotational speed (min)



300 RPM


Suitable location



Computer case


Supported processor sockets



Not supported


Type



Fan


Power



Maximum current



0.35 A


Voltage



6 - 12 V


Product dimensions



Net Weight (Product, kg)



0.5 kg


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)


Weight & dimensions



Cable length



1 m


Fan dimensions (W x D x H)



180 x 180 x 38 mm


Fan weight



499 g
