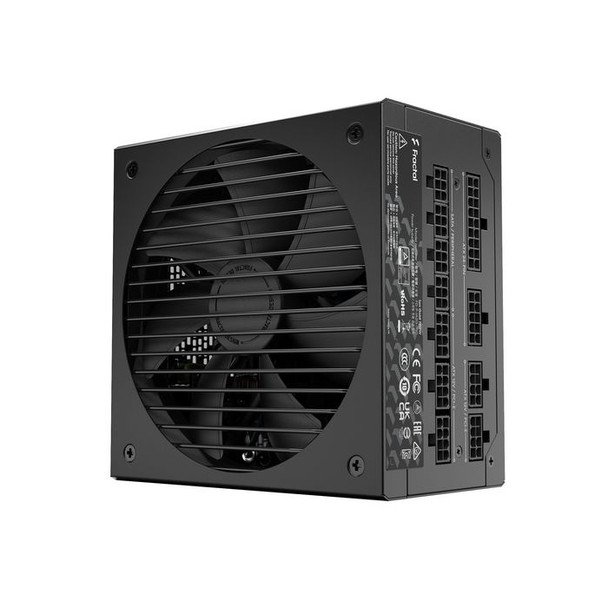

Fractal Design FD-P-IA2G-750 Ion+ 750W Platinum Power FD-P-IA2G-750

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

The power of balance
Great performance. Fully modular. Quiet operation.

80 PLUS� Gold certified
High-efficiency performance wastes less energy and reduces heat generation
More precise electrical output and full compatibility with modern components through DC-DC design
Quality components consistently deliver tight voltage regulation with low ripple and noise

Premium capacitor(s)
Premium Japanese 105�C capacitor(s) on the primary side provide superior reliability and durability

Fully modular design
Reduced clutter results in a clean and simple installation
Compact 150 mm depth allows for installation in compact cases
Provides additional cable management room in larger cases

Large low-speed fan
Ion Gold comes equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed

Take a closer look at the Ion Gold
DC-DC design for more precise electrical output. ATX 2.52 compatible for tighter timing limits. Full protection suite and 7-year warranty.

Design



Cooling type



Active


Fan diameter



14 cm


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Other features



Cable ties included



Yes


Screws included



Yes


Package dimensions



Depth (package,cm)



30 cm


Gross Weight (Package, kg)



3 kg


Height (package,cm)



11 cm


Width (package,cm)



21 cm


Packaging data



Manual



Yes


Performance



80 PLUS certification



80 PLUS Gold


ATX version



2.52


Bearing technology



LLS


Certification



FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB


EPS version



2.92


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX Power connector (24-pin)



Yes


Cabling type



Modular


CPU power cable length



60 cm


CPU power connector (4+4 pin)



Yes


EPS power connector (4+4 pin)



Yes


Motherboard power cable length



50 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



8


PCI Express power cable length



50 cm


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power cable length



150, 500


Peripheral (Molex) power connectors (4-pin)



3


SATA power cable length



150, 500


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Input current



10 - 5 A


Max output current (-12V)



0.3 A


Max output current (+12V)



62.5 A


Max output current (+3.3V)



22 A


Max output current (+5V)



22 A


Max output current (+5Vsb)



3 A


Power protection features



Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Total power



750 Watt


Product dimensions



Net Weight (Product, kg)



2.31 kg


Product Depth



15 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Sustainability certificates



CE, RoHS, WEEE


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)
