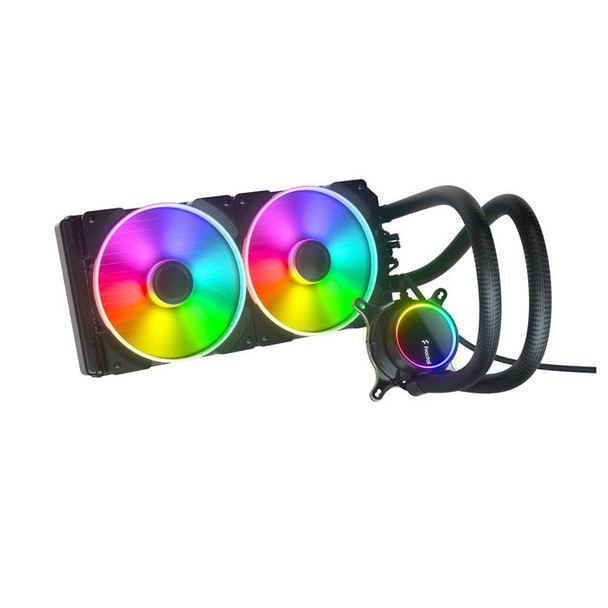

Fractal Design FD-W-2-S2802 Celsius+ S28 Prisma Processor FD-W-2-S2802

Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support.

Get the balance right
Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance � and a simple twist of the pump face changes to PWM mode for full user control

Tidier through technology
ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation

Forget the thermal paste
With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation

Color- coordinated cooling
Your options for controlling the color effects of Celsius+ are continually growing,
with current certifications including Asus AURA, Gigabyte Fusion, MSI Mystic Light,
Razer Chroma and ASRock Polychrome support

Mounting made easy
Supports the most common sockets for both Intel and AMD

Up our sleeves
Braided tube sleeves readily contain both the fan control cables and ARGB wires

Design



Base plate material



Copper


Illumination colour



Multi


Illumination LED



Yes


Number of fans



2 fan(s)


Product colour



Black, White


Radiator material



Aluminium


Logistics data



Harmonized System (HS) code



84733080


Other features



Tube material



Rubber


Package dimensions



Depth (package,cm)



41.1 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



18.7 cm


Width (package,cm)



16 cm


Packaging content



Manual



Yes


Screws included



Yes


Performance



Fan noise level (max)



34.1 dB


Fan speed (max)



1700 RPM


Fan speed (min)



500 RPM


Fan static pressure



2.38 mmH2O


Fan's mean time to failure (MTTF)



100000 Hour


Maximum air pressure



2.38 mmH2O


Maximum airflow



103.9 cfm


Pulse-width modulation (PWM) support



Yes


Pump motor speed (max)



2800 RPM


Pump motor speed (min)



800 RPM


Pump noise level



20 dB


Pump's mean time to failure (MTTF)



50000 Hour


Quantity per pack



1 pc(s)


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket TR4


Type



All-in-one liquid cooler


Power



Fan current



0.18 A


Fan voltage



12 V


Pump current



360 mA


Pump voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Fractal Design


Warranty



1 Year(s)


Weight & dimensions



Radiator depth



14.3 cm


Radiator height



3 cm


Radiator width



32.4 cm


Tube length



40 cm


Waterblock depth



6.2 cm


Waterblock height



4.5 cm


Waterblock width



6.2 cm
