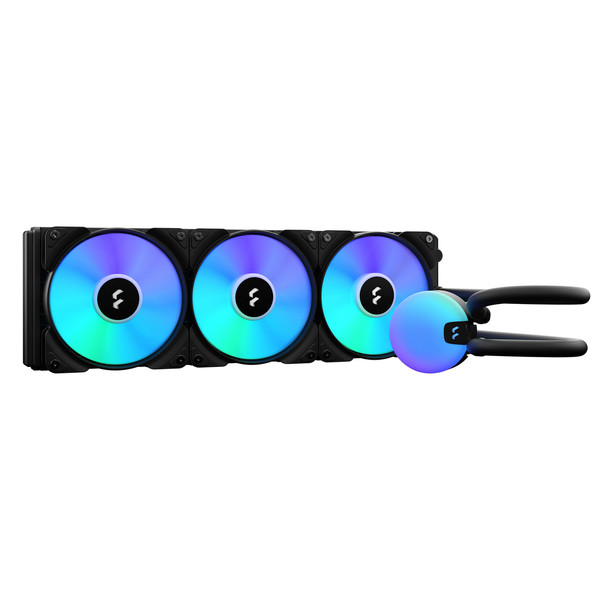

Fractal Design Lumen S36 v2 RGB All-in-one liquid cooler 12 cm 500 RPM 2000 RPM FD-W-L1-S3612

Customize your CPU water-cooling from subtle to stunning with Lumen's six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves

From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller

Color-coordinate your cooling
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma

Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators
- Compatible with LGA 1700 and AM5
- Supports the most common sockets for both Intel and AMD

Powerful aspects
Aspect fans for low turbulence and chaining support

Features


Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI


Six ARGB LEDs are yours to command via your motherboard or controller


The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orien



Design


Number of fans

3 fan(s)


Radiator material

Aluminum


Illumination colour

Multi


Base plate material

Copper


Product colour

Black


Fins material

Aluminium


Number of LEDs

6


Illumination LED

Yes



Weight & dimensions


Radiator height

2.7 cm


Package height

205 mm


Radiator depth

39.2 cm


Package depth

448 mm


Package width

137 mm


Tube length

40 cm


Package weight

2.2 kg


Radiator width

12 cm



Packaging content


Package type

Box


Mounting kit

Yes



Performance


Quantity per pack

1 pc(s)


Fan bearing technology

Rifle bearing


Fan's mean time to failure (MTTF)

90000 h


Minimum air pressure

0.23 mmH2O


Fan diameter

12 cm


Rotational speed (min)

500 RPM


Noise level (high speed)

33.2 dB


Maximum airflow

56 cfm


Maximum air pressure

2.34 mmH2O


Type

All-in-one liquid cooler


Minimum airflow (imperial)

13 cfm


Noise level (low speed)

10 dB


Pump's mean time to failure (MTTF)

50000 h


Suitable location

Processor


Pump bearing technology

Ceramic bearing


Pump noise level

22 dB


Rotational speed (max)

2000 RPM


Pump motor speed

4000 RPM


Pulse-width modulation (PWM) support

Yes



Power


Pump voltage

12 V


Pump current

340 mA


Fan current

0.37 A


Fan voltage

12 V
