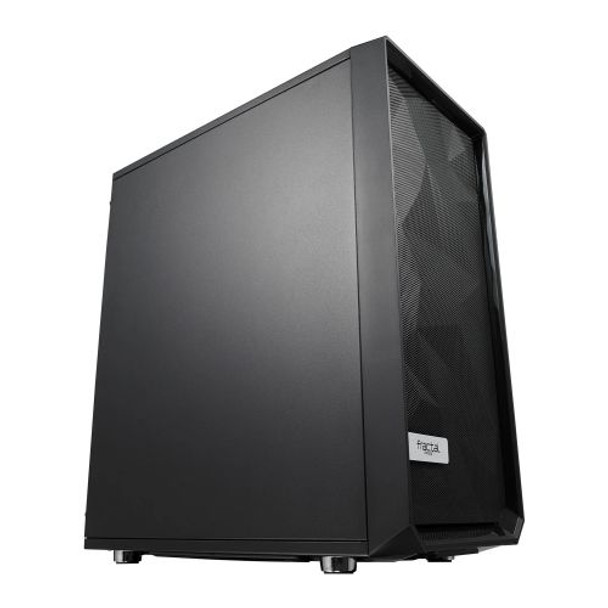

Fractal Design Meshify C Black Solid Gaming Case Atx Angular Mesh Front Hig FD-CA-MESH-C-BKO

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C carves a space uniquely its own as a new force in high-airflow design.

Streamlined high-airflow design
The performance and capacity of a larger tower in a remarkably compact mid-tower size
Newly designed angular mesh front panel maximizes air intake
Distinctive new styling with stealthy black-on-black aesthetic
Flexible storage options with room for up to 5 drives
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
Up to 35 mm of space behind motherboard plate with grommetted pass-throughs for clean cable routing

Style meets substance
An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
Streamlined high-airflow design


Newly designed angular mesh front panel maximizes air intake
Two pre-installed Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
Easy-to-clean filters on the front, top, and base with full PSU coverage and convenient front access

Open to suggestions


Flexible storage options with room for up to five drives
Full-length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Three dedicated SSD mounting options

Room for flexibility
Conceal up to five storage devices with an adjustable and removable drive cage beneath the PSU shroud plus dedicated SSD mounts behind the motherboard tray.

Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
Flexible storage options with room for up to five drives
The performance and capacity of a larger tower in a remarkably compact mid-tower size

Improved air cooling
Seven total fan positions allow for extensive air cooling. Two Fractal Design Dynamic X2 GP-12 fans come preinstalled for maximum airflow, minimal noise and 100,000 hour life expectancy.

Whatever your liquid cooling ambitions may be, Meshify C can make it happen with support for radiators up to 360 mm in the front and 240 mm up top
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
Even the largest enthusiast-class GPUs leave plenty of room for thick triple-fan rads in the front. The adjustable drive cage can be moved or removed to fit even the lengthiest heavy-duty PSUs


DescriptionSpecification

Form Factor: ATX
#Hide#Small Form Factor: No
Power Supply Wattage: No PSU
Motherboard Support: "ATX, Micro ATX, Mini ITX"
Connectors / Controls: 2 x USB 3.0
Audio I/O
Power button
Reset button
Drive Bays: 2 x 3.5""/2.5""
3 x 2.5""
Expansion Slots: 7 Expansion slots
Cooling System: Included
Front: 1 x Dynamic X2 GP-12 120mm fan
Rear: 1 x Dynamic X2 GP-12 120mm fan

Fan Mounts
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 140 mm
Rear: 1 x 120 mm
Bottom: 1 x 120 mm
.:
Water Cooling options:
Front: Up to 360 / 280 mm radiator
Top: Up to 240 mm radiator
Rear: 120 mm radiator (max width 125 mm)
Colour: Black
Material: Left side panel: Steel
Right side panel: Steel
Compatability: GFX Card length:
315 mm with front fan mounted

Max CPU Cooler:0 mm

PSU:5 mm
Weight/Dimensions: 6.16 kg
(LxWxH) 395 x 212 x 440 mm
w/o feet/protrusions/screws: 413 x 217 x 453 mm
Additional Features: See Overview / Video
Accessories: User manual
Accessory box
Top filter
Package Weight: 7.1500 kg
Warranty: 2 Years
