Fsp

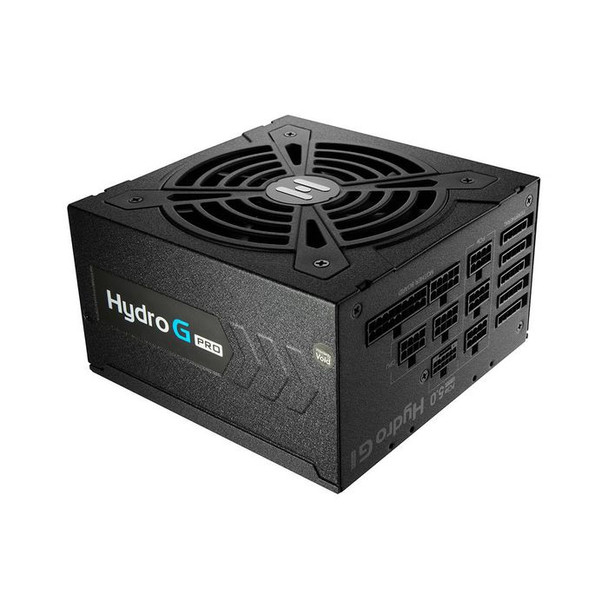

FSP PPA10A2413 Hg2 Power Supply Unit 1000 W PPA10A2413
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- PPA10A2413
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
More Powerful with Compact Size
New HYDRO G Pro series upgrades from original HYDRO G, took the best features of HYDRO G series and made them even better. With smaller size, improves performance and more powerful output give you ultra-performance.
Keep in Compliance IEC/EN 62368
FSP Group features the latest in green power technology, and provide a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC/EN 62368 standard for your gaming rigs.
80 Plus� Gold Certification
HYDRO G Pro series is a power supply with 80 PLUS� Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
ECO Switch, Quieter and Longer Lasting Fan
You can adjust the button to suit your needs, when Eco Button is switched on, making it easier to run on lower consumption and whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
Compatible with Latest PC-technology
Corresponds exactly to a variety of the latest CPU platform. Complies with Intel ATX12V V3.0 Power supply design guide and make sure the peak power in 12V supports for the latest Intel and AMD platform and delivers full power to your PC system.
The ATX 12V CPU power connector is able to support CPUs for enough watt. HYDRO G PRO series from 850W to 1000W packages 2 x 4+4 pins power connectors more than regular PSUs and provide the stable and peakoutput to your new config will
Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater and cleaner build.
REVIEW
DOWNLOAD
FAQ
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
Click here to know more details.
More Powerful with Compact Size
New HYDRO G Pro series upgrades from original HYDRO G, took the best features of HYDRO G series and made them even better. With smaller size, improves performance and more powerful output give you ultra-performance.
Keep in Compliance IEC/EN 62368
FSP Group features the latest in green power technology, and provide a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC/EN 62368 standard for your gaming rigs.
80 Plus� Gold Certification
HYDRO G Pro series is a power supply with 80 PLUS� Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
ECO Switch, Quieter and Longer Lasting Fan
You can adjust the button to suit your needs, when Eco Button is switched on, making it easier to run on lower consumption and whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
Compatible with Latest PC-technology
Corresponds exactly to a variety of the latest CPU platform. Complies with Intel ATX12V V3.0 Power supply design guide and make sure the peak power in 12V supports for the latest Intel and AMD platform and delivers full power to your PC system.
Multiple-unit Connectors
The ATX 12V CPU power connector is able to support CPUs for enough watt. HYDRO G PRO series from 850W to 1000W packages 2 x 4+4 pins power connectors more than regular PSUs and provide the stable and peakoutput to your new config will require.
Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater and cleaner build.
Off_Wet Technology
Hydro G Pro is covered with conformal coatings to guarantee reliable performance in a harsh environment. It can work perfectly with 95%RH while others cannot.
REVIEW
DOWNLOAD
FAQ
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
Click here to know more details.
More Powerful with Compact Size
New HYDRO G Pro series upgrades from original HYDRO G, took the best features of HYDRO G series and made them even better. With smaller size, improves performance and more powerful output give you ultra-performance.
Keep in Compliance IEC/EN 62368
FSP Group features the latest in green power technology, and provide a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC/EN 62368 standard for your gaming rigs.
80 Plus� Gold Certification
HYDRO G Pro series is a power supply with 80 PLUS� Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
ECO Switch, Quieter and Longer Lasting Fan
You can adjust the button to suit your needs, when Eco Button is switched on, making it easier to run on lower consumption and whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
Compatible with Latest PC-technology
Corresponds exactly to a variety of the latest CPU platform. Complies with Intel ATX12V V3.0 Power supply design guide and make sure the peak power in 12V supports for the latest Intel and AMD platform and delivers full power to your PC system.
Multiple-unit Connectors
The ATX 12V CPU power connector is able to support CPUs for enough watt. HYDRO G PRO series from 850W to 1000W packages 2 x 4+4 pins power connectors more than regular PSUs and provide the stable and peakoutput to your new config will require.
Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater and cleaner build.
Off_Wet Technology
Hydro G Pro is covered with conformal coatings to guarantee reliable performance in a harsh environment. It can work perfectly with 95%RH while others cannot.
LLC Half Bridge Topology with DC-DC Module Design
New HYDRO G Pro series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% at any load change and offer you supreme efficiency and voltage stability.
Design
Cooling type
Active
Fan diameter
12 cm
Fan location
Top
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 50 �C
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Packaging content
Cable tie(s) included
Yes
Cables included
Peripheral (Molex), SATA
Performance
80 PLUS certification
80 PLUS Gold
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
CPU P4 connector (4-pin)
2
CPU power connector (4+4 pin)
Yes
Floppy drive power connector
1
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
14
PCI Express power connectors (6+2 pin)
6
Peripheral (Molex) power connectors (4-pin)
5
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Combined power (+12V)
1000 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Combined power (+5Vsb)
12.5 Watt
Combined power (-12V)
3.6 Watt
Efficiency
90 %
Max output current (+12V)
83.33 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Maximum input current (@110V)
6 A
Maximum input current (@220V)
16 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit
Total power
1000 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
15 cm
Product Height
8.6 cm
Product Width
15 cm
Technical details
Warranty period
10 year(s)
Vendor information
Brand Name
FSP
Warranty
1 Year(s)
View AllClose
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
More Powerful with Compact Size
New HYDRO G Pro series upgrades from original HYDRO G, took the best features of HYDRO G series and made them even better. With smaller size, improves performance and more powerful output give you ultra-performance.
Keep in Compliance IEC/EN 62368
FSP Group features the latest in green power technology, and provide a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC/EN 62368 standard for your gaming rigs.
80 Plus� Gold Certification
HYDRO G Pro series is a power supply with 80 PLUS� Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
ECO Switch, Quieter and Longer Lasting Fan
You can adjust the button to suit your needs, when Eco Button is switched on, making it easier to run on lower consumption and whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
Compatible with Latest PC-technology
Corresponds exactly to a variety of the latest CPU platform. Complies with Intel ATX12V V3.0 Power supply design guide and make sure the peak power in 12V supports for the latest Intel and AMD platform and delivers full power to your PC system.
The ATX 12V CPU power connector is able to support CPUs for enough watt. HYDRO G PRO series from 850W to 1000W packages 2 x 4+4 pins power connectors more than regular PSUs and provide the stable and peakoutput to your new config will
Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater and cleaner build.
REVIEW
DOWNLOAD
FAQ
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
Click here to know more details.
More Powerful with Compact Size
New HYDRO G Pro series upgrades from original HYDRO G, took the best features of HYDRO G series and made them even better. With smaller size, improves performance and more powerful output give you ultra-performance.
Keep in Compliance IEC/EN 62368
FSP Group features the latest in green power technology, and provide a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC/EN 62368 standard for your gaming rigs.
80 Plus� Gold Certification
HYDRO G Pro series is a power supply with 80 PLUS� Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
ECO Switch, Quieter and Longer Lasting Fan
You can adjust the button to suit your needs, when Eco Button is switched on, making it easier to run on lower consumption and whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
Compatible with Latest PC-technology
Corresponds exactly to a variety of the latest CPU platform. Complies with Intel ATX12V V3.0 Power supply design guide and make sure the peak power in 12V supports for the latest Intel and AMD platform and delivers full power to your PC system.
Multiple-unit Connectors
The ATX 12V CPU power connector is able to support CPUs for enough watt. HYDRO G PRO series from 850W to 1000W packages 2 x 4+4 pins power connectors more than regular PSUs and provide the stable and peakoutput to your new config will require.
Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater and cleaner build.
Off_Wet Technology
Hydro G Pro is covered with conformal coatings to guarantee reliable performance in a harsh environment. It can work perfectly with 95%RH while others cannot.
REVIEW
DOWNLOAD
FAQ
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
Click here to know more details.
More Powerful with Compact Size
New HYDRO G Pro series upgrades from original HYDRO G, took the best features of HYDRO G series and made them even better. With smaller size, improves performance and more powerful output give you ultra-performance.
Keep in Compliance IEC/EN 62368
FSP Group features the latest in green power technology, and provide a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC/EN 62368 standard for your gaming rigs.
80 Plus� Gold Certification
HYDRO G Pro series is a power supply with 80 PLUS� Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
ECO Switch, Quieter and Longer Lasting Fan
You can adjust the button to suit your needs, when Eco Button is switched on, making it easier to run on lower consumption and whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
Compatible with Latest PC-technology
Corresponds exactly to a variety of the latest CPU platform. Complies with Intel ATX12V V3.0 Power supply design guide and make sure the peak power in 12V supports for the latest Intel and AMD platform and delivers full power to your PC system.
Multiple-unit Connectors
The ATX 12V CPU power connector is able to support CPUs for enough watt. HYDRO G PRO series from 850W to 1000W packages 2 x 4+4 pins power connectors more than regular PSUs and provide the stable and peakoutput to your new config will require.
Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater and cleaner build.
Off_Wet Technology
Hydro G Pro is covered with conformal coatings to guarantee reliable performance in a harsh environment. It can work perfectly with 95%RH while others cannot.
LLC Half Bridge Topology with DC-DC Module Design
New HYDRO G Pro series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% at any load change and offer you supreme efficiency and voltage stability.
Design
Cooling type
Active
Fan diameter
12 cm
Fan location
Top
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 50 �C
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Packaging content
Cable tie(s) included
Yes
Cables included
Peripheral (Molex), SATA
Performance
80 PLUS certification
80 PLUS Gold
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
CPU P4 connector (4-pin)
2
CPU power connector (4+4 pin)
Yes
Floppy drive power connector
1
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
14
PCI Express power connectors (6+2 pin)
6
Peripheral (Molex) power connectors (4-pin)
5
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Combined power (+12V)
1000 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Combined power (+5Vsb)
12.5 Watt
Combined power (-12V)
3.6 Watt
Efficiency
90 %
Max output current (+12V)
83.33 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Maximum input current (@110V)
6 A
Maximum input current (@220V)
16 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit
Total power
1000 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
15 cm
Product Height
8.6 cm
Product Width
15 cm
Technical details
Warranty period
10 year(s)
Vendor information
Brand Name
FSP
Warranty
1 Year(s)
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
