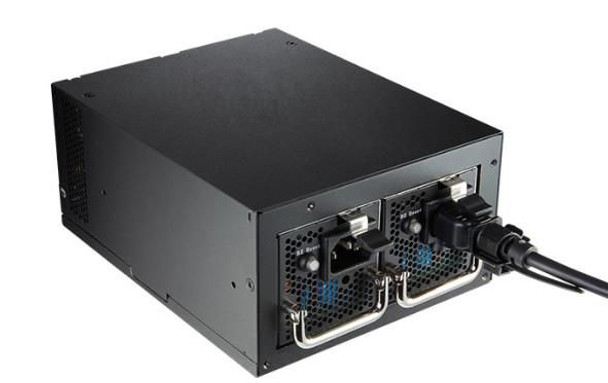

FSP PPA5008601 Twins Pro 500W Power Supply PPA5008601

Twins PRO series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end braket needed, ideal for mail, web or home server. Hot swappable modules design provides stable power supply; when one fails, the other can take over the load immediately. Thus users do not need to worry about any server/PC power off situation.

Redundant system design and built-in hot swappable modules

With redundancy in mind, the Twin Pro modular system design is more efficient and operates quieter by distributing the power load between two hot swappable PSU modules. If one unit fails, the second unit takes control of the power load until a replacement is swapped in. Each unit can be hot swapped and replaced without any system down-time offering a seamless and uninterrupted operation.

Black ribbon cable design

The round black ribbon cable design helps with heat emission effect and extends the life span of the components. The ribbon cable design also offers a cleaner aesthetic and allows for better cable management in custom build systems.

Power cord locking device

The Twins Pro series features a power cord locking device that secures the power cord from acciedntal disconnect helping to ensure stable poeration without any system interruptions.

The Twins PRO series can be connected to a USB header and synced with the FSP Guardian software to monitor power input, power output, efficiency, and other internal records in real-time. The FSP Guardian software can warn users when temperatures reaches certain levels by alerting them immediately with warning messages that will update the user with all of the latest information in real-time.

Ideal for home, mail or web server systems

The Twins series is an ATX PS2 size redundant power supply. The Twins Pro does not have front-end brackets, which makes it an deal power solution for a home cloud server, mail server, or a small to medium-sized enterprise (SME) web server.

Design



Number of fans



2 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Gold


Power supply unit (PSU) form factor



PS/2


Purpose



Server


Ports & interfaces



CPU power connector (4+4 pin)



Yes


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



6


PCI Express power connectors (6+2 pin)



4


Peripheral (Molex) power connectors (4-pin)



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Efficiency



90 %


Input current



8-4 A


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Short circuit


Total power



500 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



19 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


FSP


Warranty



1 Year(s)
