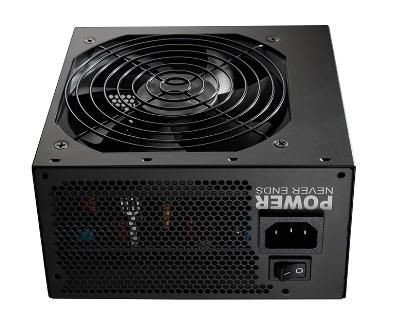

FSP PPA6005605 Hp2-600 Power Supply Unit 600 PPA6005605

The new Hydro K PRO PSUs comply fully ATX12 v2.52 standard and the latest safety 62368 regulation as well and comes with high-grade ribbon cables, give your PC a polished look. The Hydro K PRO series is designed as a powerful single +12V rail that continually delivers maximum performance for the most demanding graphic cards, while FSP�s custom DC-DC design provides safety and power efficiency. Besides, with an 230V 80 Plus� rating, delivers over 88% high efficiency and low noise levels thanks to its hydraulic bearing fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.

Up-to-date Circuit Design
A dual forward topology integrated with active PFC and PWM technology and double EMI filter delivers full power and enhance stability to your system.

Stable DC to DC Output Quality
DC to DC modules with low ripple noise and prolongs system lifetime.

Double Layer EMI Filter
To reduce electromagnetic interference and suppress noise.

Low Noise, Less Heat
Hydro K PRO series is equipped with the 120mm hydraulic bearing fan (HYB) which makes optimum cooling and reduces noise. Moreover, the lifespan of fan is longer than standard one.

+12V Single Rail Design
Designed for power-intensive VGA cards, provides strong power to any overloading condition.

80 Plus� Bronze Certification
With an 230V 80 Plus� rating, Hydro K PRO series delivers over 88% high efficiency.

Energy Related ErP/Eup 2013
Green Power! The total AC power consumption less than 5Vsb rail to meet the new EU Regulation ErP 2013 for modern systems.

Design



Cooling type



Active


Fan diameter



12 cm


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Bronze


Bearing technology



HYB


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



Cabling type



Semi-Modular


CPU power connector (4+4 pin)



Yes


Floppy disk drive connector



Yes


Floppy drive power connector



1


Motherboard power connector



24-pin ATX


Number of SATA power connectors



5


PCI Express power connectors (6+2 pin)



2


Peripheral (Molex) power connectors (4-pin)



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



200 - 240 V


Combined power (+12V)



600 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



3.6 Watt


Efficiency



88 %


Input current



4.5 A


Max output current (+12V)



50 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



2.5 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Short circuit


Total power



600 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



15 cm


Product Height



8.6 cm


Product Width



14 cm


Vendor information



Brand Name


FSP


Warranty



1 Year(s)
