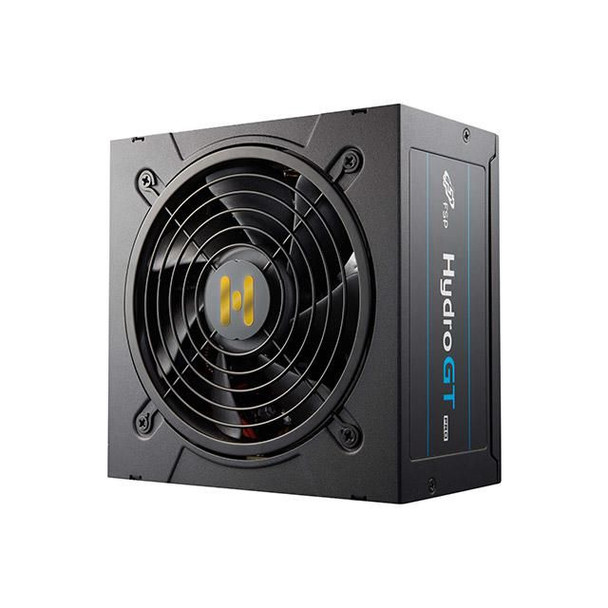

FSP PPA8503510 Hydro Gt Pro 850W Power PPA8503510

Hydro GT PRO series with 80PLUS gold certificate, over 90% high energy conversion can less heat and LLC topology 450V, 105�C Japanese main capacitors make Hydro GT PRO series a perfect solution for the most extremely harsh working environment. Hydro GT PRO series eliminates the problem of dealing with the cables, thanks to its semi-modular design and the all-black ribbon cables that give PC builds a clean look.

Design



Cooling type



Active


Fan diameter



12 cm


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Gold


ATX version



2.5


Bearing technology



FDB


EPS version



2.92


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



Cabling type



Semi-Modular


CPU power cable length



70 cm


CPU power connector (4+4 pin)



Yes


Motherboard power cable length



60 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



10


PCI Express power cable length



50 cm


PCI Express power connectors (6+2 pin)



6


Peripheral (Molex) power cable length



500


Peripheral (Molex) power connectors (4-pin)



2


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



850 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



120 Watt


Combined power (+5Vsb)



12.5 Watt


Combined power (-12V)



3.6 Watt


Efficiency



90 %


Hold time



17 Millisecond


Max output current (+12V)



70.83 A


Max output current (+3.3V)



20 A


Max output current (+5V)



20 A


Max output current (+5Vsb)



2.5 A


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Short circuit


Total power



850 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



15 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


FSP


Warranty



1 Year(s)
