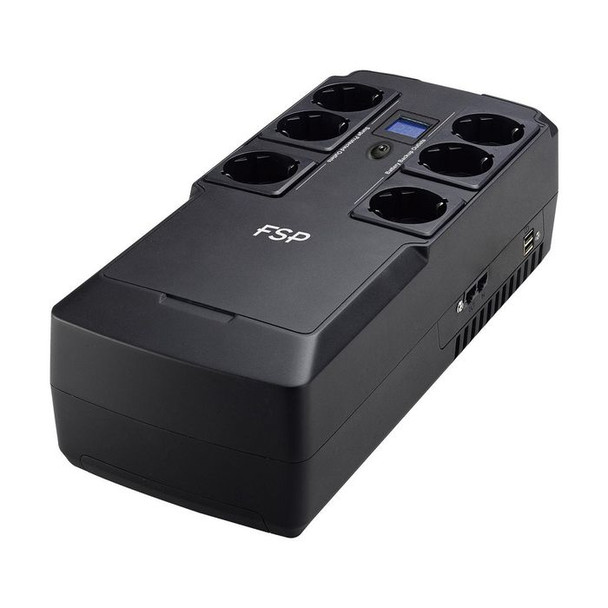

FSP PPF4801702 NanoFit 800 800VA/480W UPS PPF4801702

A compact size with stand and mounting flexibility Off line UPS to provide the expected backup power for home, gaming or personal appliances.

Compact size can be desktop or wall-mounted

RJ45 Surge Protection safeguards your equipment against damaging surges and spikes that travel along utility and internet lines.

Nanofit 600/800 can be monitored by computer software
(This function only available for UPS with Type-B com. Port)

FSP UPS provides back up battery power so you can work through short and medium length power outages.

Protect your productivity from the constant threat of bad power and lost data.

Battery



Battery capacity



5 Ah


Battery recharge time



8 Hour


Battery voltage



12 V


Number of batteries supported



1


Typical backup time at full load



14 min


Design



Display



LCD


Display type



LCD


Form factor



Compact


Product colour



Black


Safety



CE


Features



Input frequency



50/60 Hz


Input operation voltage (max)



240 V


Input operation voltage (min)



220 V


Noise level



40 dB


Output frequency



50/60 Hz


Output frequency regulation



�1 Hz


Output operation voltage (max)



240 V


Output operation voltage (min)



220 V


Output power



480 Watt


Output power capacity



0.8 kVA


Output voltage regulation



�10% %


Power protection features



Overcharge, Overdischarge, Overload


Response time



6 Millisecond


Surge protection



Yes


Surge protection features



Network


UPS topology



Standby (Offline)


Waveform



Sine


Logistics data



Harmonized System (HS) code



85078000


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



3 kg


Ports & interfaces



AC outlets quantity



6 AC outlet(s)


Ethernet LAN (RJ-45) ports



2


USB 2.0 ports quantity



2


USB port



Yes


USB port type



USB Type-A


Product dimensions



Net Weight (Product, kg)



2.9 kg


Product Depth



30.5 cm


Product Height



9.5 cm


Product Width



15.85 cm


Technical details



Harmonized System (HS) code



85078000


Vendor information



Brand Name


FSP


Warranty



2 Year(s)
