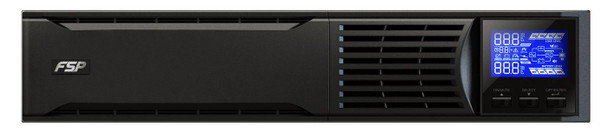

FSP PPF9001401 Champ 1K Rack PPF9001401

FSP Champ is the high density version of double-conversion online UPS with an output power factor that reaches 0.9 and featured with ECO mode for energy saving.

FSP Champ Rack is the high density version of double-conversion online UPS with a output power factor 0.9. It�s designed in small cabinet with microprocessor controller.

Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.

Battery



Battery capacity



9 Ah


Battery voltage



12 V


Number of batteries supported



2


Design



Form factor



Rackmount


Product colour



Black


Rack capacity



2U


Features



Input frequency



40 - 70 Hz


Input operation voltage (max)



240 V


Input operation voltage (min)



100 V


Noise level



50 dB


Output frequency



50/60 Hz


Output frequency regulation



�0.5 Hz


Output operation voltage (max)



240 V


Output operation voltage (min)



100 V


Output power



900 Watt


Output power capacity



1 kVA


Output voltage regulation



�1 %


Power factor



0.9


UPS topology



Double-conversion (Online)


Waveform



Pure sine


Operational conditions



Operating relative humidity (H-H)



20 - 90 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



12 kg


Ports & interfaces



RS-232 ports



1


USB 2.0 ports quantity



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



11.9 kg


Product Depth



31 cm


Product Height



8.8 cm


Product Width



43.8 cm


Technical details



Harmonized System (HS) code



85078000


Vendor information



Brand Name


FSP


Warranty



2 Year(s)
