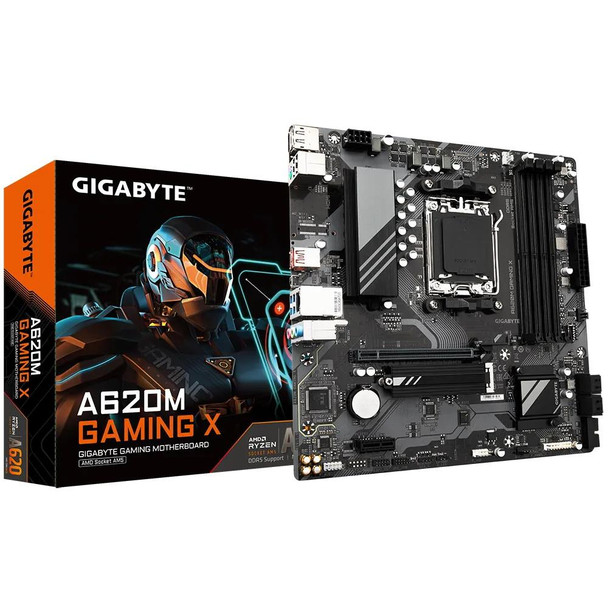

Gigabyte A620M GAMING X Socket Am5/A620/Ddr5/S-Ata 6Gb/S/Micro Atx A620M GAMING X

Product Specifications



Product Name:

Gigabyte A620M GAMING X (Socket AM5/A620/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte.com



Model Number:

A620M GAMING X



EAN:

4719331854096



UPC:

889523036983



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

AMD A620



CPU Interface:

Socket AM5



CPU Support:

https://www.gigabyte.com/Motherboard/A620M-GAMING-X-rev-10/support#support-cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 6400 (O.C.)



Max. Memory Support:
2GB



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

1 x PCIe Gen 4.0 x4



On-Board LAN:

Realtek GbE LAN chip (1 Gbps/100 Mbps)



On-Board Audio:

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel




On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

2



Back USB 3.2 Port(s) Type-A Gen 1:

2



Back USB 3.2 Port(s) Type-C Gen 1:

1



Back USB 3.2 Port(s) Type-A Gen 2:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

1 x Q-Flash Plus



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

2



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):

1 x Addressable LED Strip Header
1 x RGB LED Srip Header




Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

26.5cm



Package Length:

26.5cm



Package Height:

5.5cm



Gross Weight:

1.00Kg



Special Features:

AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.
Unparalleled Performance: 8+2+1 Phases Digital VRM Solution.
Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector.
Advanced Thermal Design and M.2 Thermal Guard: To Ensure VRM Power Stability and M.2 SSD Performance.
PCIe x16 EZ-Latch with Quick Release Screwless Design.
Fast Networks: GbE LAN.
Extended Connectivity: DisplayPort, HDMI.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.




Package Contents:

Motherboard
