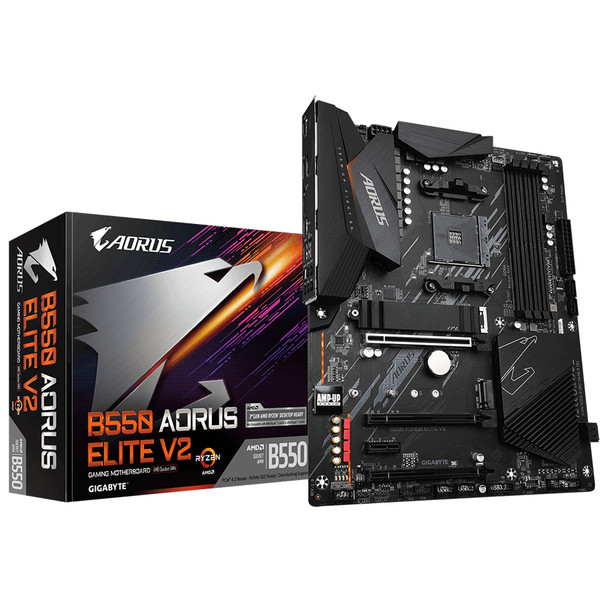

Gigabyte B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CP B550 AORUS ELITE V2

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Features


Supports AMD Ryzen� 5000 Series/ 3rd Gen Ryzen� and 3rd Gen Ryzen� with Radeon� Graphics Processors


Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs


12+2 Phases Digital Twin Power Design with 50A DrMOS


Advanced Thermal Design with Enlarged Surface Heatsinks


Ultra Durable� PCIe 4.0 x16 Slot


Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard


AMP-UP Audio with ALC1200 and WIMA Capacitors


Blazing Fast 2.5GbE LAN with Bandwidth Management


Front USB 3.2 Gen1 Type-C� and DisplayPort & HDMI for Multiple Display


RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips


Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP


Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card


Pre-installed IO Shield for Easy and Quick Installation



Processor


Maximum number of SMP processors

1


Processor socket

Socket AM4


Compatible processor series

3rd Generation AMD Ryzen� 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen� 7, 3rd Generation AMD Ryzen� 9


Supported processor sockets

Socket AM4


Maximum internal memory supported by processor

128 GB


Processor manufacturer

AMD



Memory


Supported memory types

DDR4-SDRAM


Unbuffered memory

Yes


ECC

Yes


Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB


Supported memory clock speed (max)

4733 MHz


Non-ECC

Yes


Number of memory slots

4


Maximum internal memory

128 GB


Memory slots type

DIMM


Supported memory clock speeds

2133,2400,2667,2933,3200 MHz


Memory channels

Dual-channel



Rear panel I/O ports


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

3


Microphone in

Yes


Headphone outputs

1


DisplayPorts quantity

1


Ethernet LAN (RJ-45) ports

1


S/PDIF out port

Yes


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

2


USB 2?0 ports quantity

2



Other features


Weight

1.12 kg



Internal I/O


Front panel audio connector

Yes


USB 2?0 connectors

2


USB 3?2 Gen 1 (3?1 Gen 1) connectors

1


ATX Power connector (24-pin)

Yes


CPU fan connector

Yes


Total number of SATA connectors

4


12V power connector

Yes


Number of SATA III connectors

4


Front panel connector

Yes


TPM connector

Yes


EPS power connector (8-pin)

Yes


RGB LED pin header

Yes



Graphics


Parallel processing technology support

Not supported


Graphics card family

AMD


DirectX version

12.0



Weight & dimensions


Height

35 mm


Width

305 mm


Depth

244 mm



BIOS


ACPI version

5.0


System Management BIOS (SMBIOS) version

2.7


Desktop Management Interface (DMI) version

2.7


BIOS type

UEFI AMI


BIOS memory size

256 Mbit


Clear CMOS jumper

Yes



Packaging content


Batteries included

Yes



Storage controllers


Supported storage drive types

HDD & SSD


Number of storage drives supported

6


RAID support

Yes


RAID levels

0, 1, 10


Supported storage drive interfaces

M.2, SATA III


Number of HDDs supported

4



Logistics data


Country of origin

China


Products per shipping (inner) case

1 pc(s)


Harmonized System (HS) code

84733020



Technical details


Warranty period

3 year(s)



Network


LAN controller

Realtek RTL8125


Wi-Fi

No


Ethernet LAN

Yes


Ethernet interface type

2.5 Gigabit Ethernet, Gigabit Ethernet



Expansion slots


PCI Express x1 (Gen 3?x) slots

1


PCI Express x16 slots

2


Number of M?2 (M) slots

2


PCI Express x1 (Gen 2?x) slots

1


PCI Express x16 (Gen 4?x) slots

1



Battery


Battery technology

Lithium-Manganese Dioxide (LiMnO2)


Battery type

CR2032


Battery weight

3 g


Number of battery cells

1


Lithium weight per battery

0.07 g



Features


Motherboard chipset

AMD B550


Windows operating systems supported

Windows 10 x64, Windows 11 x64


Product colour

Black


Motherboard chipset family

AMD


Component for

PC


Audio chip

Realtek ALC1200


Audio output channels

7.1 channels


Motherboard form factor

ATX



Packaging data


Package height

80 mm


Package depth

270 mm


Package width

335 mm


Package weight

1.8 kg
