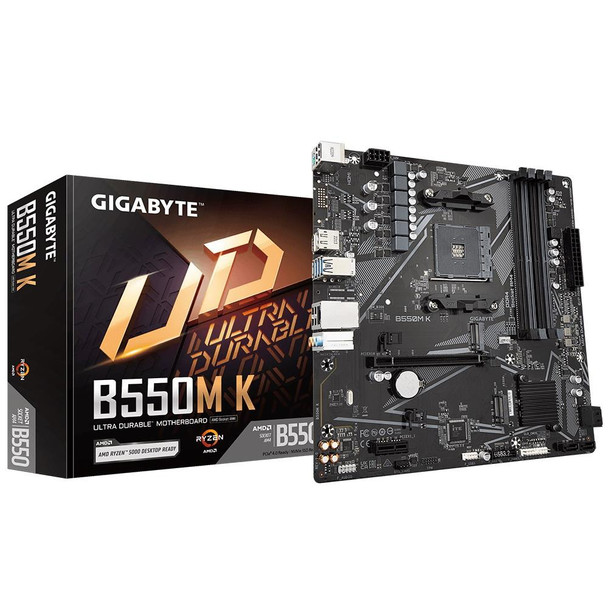

Gigabyte B550M K Ddr4 Socket Am4/B550/Ddr4/S-Ata 6Gb/S/Micro Atx B550M K

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
4639


Product Specifications



Product Name:

Gigabyte B550M K DDR4 (Socket AM4/B550/DDR4/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte.com



Model Number:

B550M K



EAN:

4719331852764



UPC:

889523036006



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

AMD B550



CPU Interface:

Socket AM4



CPU Support:

https://www.gigabyte.com/Motherboard/B550M-K-rev-10/support#support-cpu



RAM Technology:

DDR4 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR4 4733 (O.C.)



Max. Memory Support:
8GB



PCI Express 3.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

6



RAID:

Raid 0/1/10



On-Board LAN:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)



On-Board Audio:

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel




On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

4



Back USB 3.2 Port(s) Type-A Gen 1:

4



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

1



USB 3.2 Header(s) Gen 1:

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

26.5cm



Package Length:

26.5cm



Package Height:

5.5cm



Gross Weight:

0.78Kg



Special Features:

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors.
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
Ultra Durable PCIe 4.0 Ready x16 Slot.
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors.
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.
GbE LAN with Bandwidth Management.
Rear DisplayPort and HDMI for Multi-display Support.
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Anti-Sulphur Resistors Design.




Package Contents:

Motherboard
