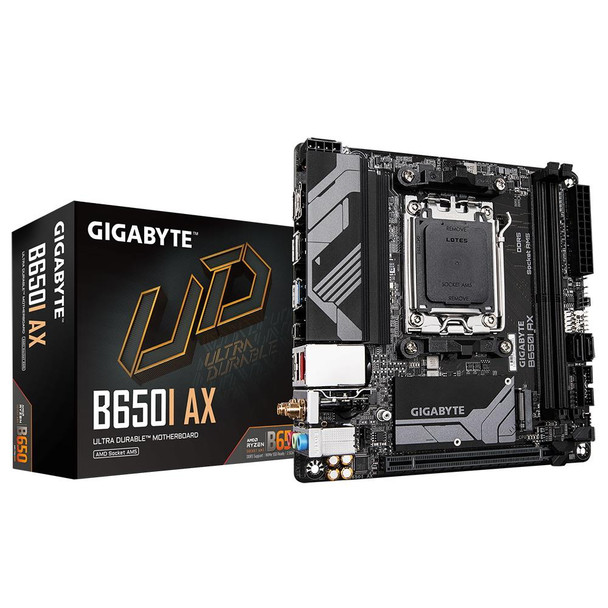

Gigabyte B650I AX Socket Am5/B650/Ddr5/S-Ata 6Gb/S/Mini Itx B650I AX

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
4403


Product Specifications



Product Name:

Gigabyte B650I AX (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Mini ITX)



Web Address:

www.gigabyte.com



Model Number:

B650I AX



EAN:

4719331859190



UPC:

889523040003



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

AMD B650



CPU Interface:

Socket AM5



CPU Support:

https://www.gigabyte.com/Motherboard/B650I-AX-rev-10/support#support-cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR5 6400 (O.C.)



Max. Memory Support:

96GB



PCI Express 4.0 x16:

1



S-ATA 6Gb/s Port(s):

2



RAID:

Raid 0/1



M.2 Socket(s):

1 x PCIe Gen 4.0 x4



On-Board LAN:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 6E



Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands



Bluetooth:

v5.3



On-Board Audio:

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel




On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

3



Back USB 3.2 Port(s) Type-A Gen 1:

1



Back USB 3.2 Port(s) Type-C Gen 1:

1



Back USB 3.2 Port(s) Type-A Gen 2:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

2 x SMA antenna connectors (2T2R)



Back Button(s):

1 x Q-Flash Plus



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

1



USB 3.2 Header(s) Gen 1:

2



Front Panel Audio Connector:

1



Internal Other Port(s):

1 x Addressable LED strip header
1 x RGB LED strip header




Form Factor:

Mini ITX



Product Width:
0mm



Product Length:
0mm



Package Width:
cm



Package Length:

22.5cm



Package Height:

6.5cm



Gross Weight:

0.81Kg



Special Features:

AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.
Unparalleled Performance: 5+2+1 Phases Digital VRM Solution.
Dual Channel DDR5: 2 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector.
EZ-Latch: PCIe x16 Slot with Quick Release Design.
Fast Networks: Wi-Fi 6E 802.11ax and 2.5GbE LAN.
Extended Connectivity: DP, HDMI.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.




Package Contents:

Motherboard
