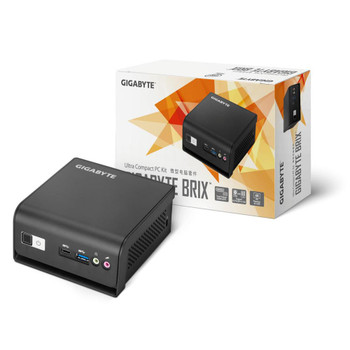

Gigabyte GB-BMCE-4500C Gigabyte GB-BMCE-4500C rev. GB-BMCE-4500C

BRIX Latest Intel 10nm Pentium Silver/ Celeron Processor Scenarios

Powerful Commercial Applications
- Factory testing machine
- Bank ATM system
- Gaming equipment
- Vending machine
- Security system

At the Office
- Meeting room device
- Workstation
- Studio
- Freelance office space

The Perfect Compact Home PC
- Living room
- Bedroom
- Kitchen
- Study

Simpler and Smarter Digital Life
- Shopping mall signboard
- Scoreboard system
- Split-flap display
- Indoor / Outdoor LED Display

Vertical Markets
- School
- University computer labs
- Libraries
- Hospital / Medical equipment
- Governmental

Intel� Pentium� Silver and Celeron� Processor
BRIX use the newest Intel� Pentium� Silver and Celeron� processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life. BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing. The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.

Latest Intel 10nm Pentium Silver/ Celeron Processor Performance
Intel new generation of small processor is much more powerful than before. Thanks new 10nm manufacturing processing and new core/GPU architectures, user can benefit not only performance boost, but also enjoy high-detail of UHD contents never before. Overall system benchmark can be easily over 40% and UP.

Connecting the Future
The USB Type-C� is a new reversible connector that is loaded with useful features such as USB 3.0 support for 5 Gb/s transfer speed.

GIGABYTE BRIX� also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth users to easily connect mobile devices.

Support HDMI 2.0b / DP 1.4b Dual Output
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth � nearly twice that of the previous generation.

This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.

GIGABYTE Intel 10nm Pentium Silver/ Celeron Processor Scenarios series support up to 2 independent displays, through its HDMI + mini Display ports, with 4K resolution and HDR 10 support. It gives users the flexibility to configure their any environment without any limitation.

Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5� HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.

- PCI-e SSD for FAST BOOT, snapping response
- 2.5� SSD/HDD for low cost large capacity storage

DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.

VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX� can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

System Overview
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor. A gigabit ethernet speed up your internet/intranet connectivity.

Design



Cable lock slot



Yes


Cooling type



Passive


On/off switch



Yes


Panel mounting interface



75 x 75, 100 x 100


Product colour



Black


Product type



Mini PC barebone


VESA mounting



Yes


Graphics



Discrete graphics card model



Not available


Graphics card family



Intel


Number of displays supported



2


On-board graphics card



Yes


On-board graphics card model



Intel� UHD Graphics 605


Logistics data



Harmonized System (HS) code



84713000


Memory



Maximum internal memory



16 GB


Memory slots type



SO-DIMM


Number of memory slots



1


Supported memory clock speeds



2933


Network



Bluetooth



Yes


Bluetooth version



4.2


Ethernet LAN



Yes


LAN controller



Realtek RTL8111HS


Top Wi-Fi standard



Wi-Fi 5 (802.11ac)


Wi-Fi



Yes


Operational conditions



Operating temperature (T-T)



0 - 35 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



AC adapter included



Yes


Performance



Windows operating systems supported



Windows 10 x64


Ports & interfaces



DC-in jack



Yes


DisplayPort version



1.2a


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.0b


Headphone outputs



1


Microphone in



Yes


Mini DisplayPorts quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


Power



AC adapter output current



2.1 A


AC adapter output voltage



19 V


AC input voltage



100 - 240 V


Power supply type



External AC adapter


Processor



Built-in processor



Yes


CPU configuration (max)



1


L3 cache



4 MB


Processor boost frequency



2.8 GHz


Processor cores



2


Processor family



Intel� Celeron�


Processor frequency



1.1 GHz


Processor manufacturer



Intel


Processor model



N4500


Processor threads



2


Thermal Design Power (TDP)



6 Watt


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Idle States



Yes


Intel 64



Yes


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



11.62 cm


Product Height



5.62 cm


Product Width



10.3 cm


Storage



Number of storage drives supported



2


Storage drive sizes supported



2.5, M.2


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Gigabyte


Warranty



1 Year(s)
