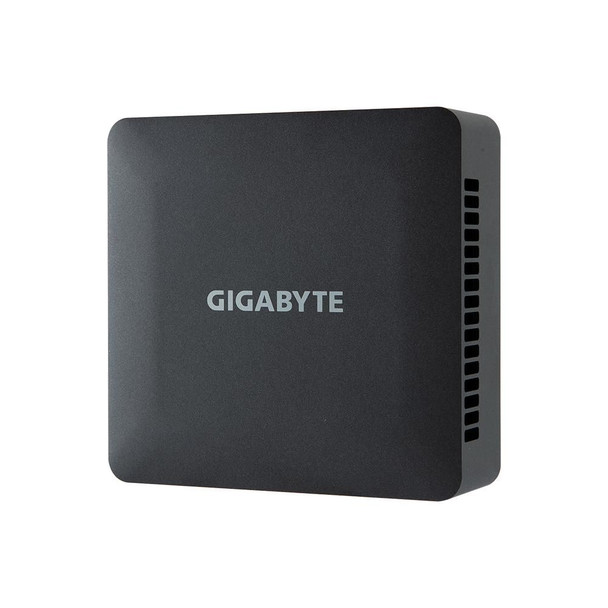

Gigabyte GB-BRI3H-1315 Brix Black I3-1315U GB-BRI3H-1315

Upgrade to the future
Minimalism meets power
The most recent generation of mainstream BRIX products adopts an all-new chassis design. Computing performance has increased, but the design does not require an increase in the size of the chassis. Its appearance has curved, soft, and twisted lines with a liveliness that makes it very unobtrusive.

By the way it was assembled and layered, and designing oblique angles around the base, a sense of simplicity is created to achieve a lightweight design. This allows users to enjoy ultimate computing performance while also having a stylish and elegant product.

With the latest 13th Gen Intel� Core� Mobile Processors, Intel has taken its hybrid design to the next level. The new processors boast more powerful Performance-cores (P-cores), allowing for swift and seamless completion of tasks. The improved Efficient-cores (E-cores) enable even better multi-tasking, making it easier to tackle several tasks at once. These advanced processors also deliver stunning graphics and unparalleled connectivity, providing an unparalleled immersive display and lightning-fast wired and wireless connections.

Computing with ultra efficient multi-tasking
Up to 10 cores (2 P-cores, 8 E-cores) and enhanced Intel Thread Director.

Intel Iris X? Graphics
Render in the background while editing video; enjoy responsive HD gaming while streaming music; or game, stream and record at once.

Amazing End-to-End Connectivity with Wi-Fi 6
Nearly a threefold improvement in throughput speed allows for fast uploads and downloads at low latency. Intel� Wi-Fi 6 (Gig+) gives you the freedom to work and learn from anywhere�and relax with smooth, high-quality streaming.

Delivering Superior Performance Where You Need It Most
You can save time and enhance the quality of your computing experience by utilizing built-in intelligence. Enjoy features like low noise operation while collaborating and automated text, image, and audio improvements while creating. In addition, enjoy system optimization for bandwidth and video resolution while gaming on the go.

Design



Cable lock slot



Yes


On/off switch



Yes


Panel mounting interface



75 x 75, 100 x 100


Product colour



Black


Product type



Mini PC barebone


VESA mounting



Yes


Graphics



Graphics card family



Intel


On-board graphics card



Yes


On-board graphics card model



Intel Iris Xe Graphics


Memory



Maximum internal memory



64 GB


Memory slots type



SO-DIMM


Number of memory slots



2


Supported memory clock speeds



3200


Supported memory types



DDR4-SDRAM


Network



Bluetooth



Yes


Bluetooth version



5.2


Ethernet LAN



Yes


LAN controller



Intel I226-V


Top Wi-Fi standard



Wi-Fi 6 (802.11ax)


Wi-Fi



Yes


WLAN controller model



Intel Wi-Fi 6 AX203


Operational conditions



Operating temperature (T-T)



0 - 35 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Windows operating systems supported



Windows 10, Windows 11


Ports & interfaces



Combo headphone/mic port



Yes


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



2


HDMI version



2.1


USB 2.0 ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



2


Power



AC adapter output current



6.92 A


AC adapter output voltage



19.5 V


AC input voltage



100 - 240 V


Power supply



135 Watt


Processor



Built-in processor



Yes


CPU configuration (max)



1


Processor boost frequency



4.5 GHz


Processor cache



10 MB


Processor cores



6


Processor family



Intel� Core� i3


Processor generation



Intel Core i3-13xxx


Processor manufacturer



Intel


Processor model



i3-1315U


Processor threads



8


Thermal Design Power (TDP)



15 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



12 cm


Product Height



4.97 cm


Product Width



12.4 cm


Storage



SSD form factor



M.2


Storage drive interface



PCI Express, Serial ATA III


Storage drive sizes supported



2.5


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Gigabyte


Warranty



1 Year(s)
