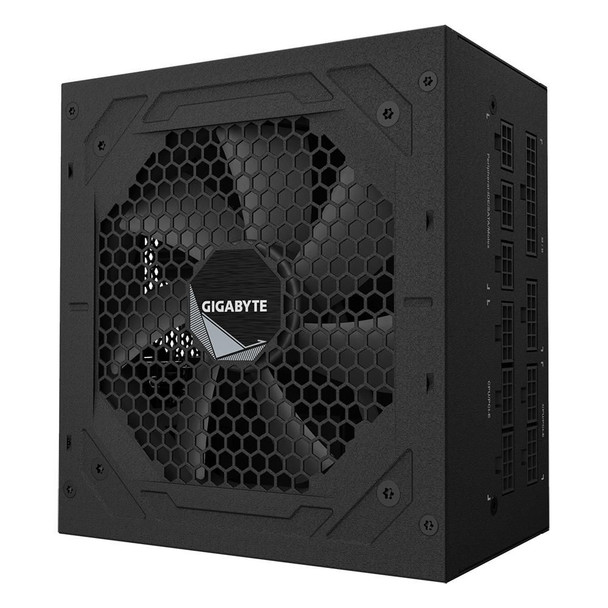

Gigabyte GP-UD1000GM P1000Gm Power Supply Unit GP-UD1000GM

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

Design



Fan diameter



12 cm


Fan location



Top


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging content



Cables included



CPU, PCIe, Peripheral (Molex), SATA


Performance



80 PLUS certification



80 PLUS Gold


Bearing technology



HDB


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX power connector (20+4 pin)



Yes


Cabling type



Modular


CPU power cable length



60 cm


CPU power connector (4+4 pin)



Yes


EPS power connector (4+4 pin)



Yes


Floppy drive power connector



1


Motherboard power cable length



61 cm


Motherboard power connector



20+4 pin ATX


Number of SATA power connectors



8


PCI Express power connectors (6+2 pin)



6


Peripheral (Molex) power connectors (4-pin)



3


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



999.6 Watt


Combined power (+3.3V)



125 Watt


Combined power (+5V)



125 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Efficiency



90 %


Hold time



16 Millisecond


Input current



15 - 6.5 A


Max output current (+12V)



83.3 A


Max output current (+3.3V)



25 A


Max output current (+5V)



25 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Power protection features



Over current, Over power, Over voltage, Short circuit, Under voltage


Total power



1000 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



15 cm


Product Height



8.6 cm


Product Width



14 cm


Vendor information



Brand Name


Gigabyte


Warranty



1 Year(s)
