Gigabyte

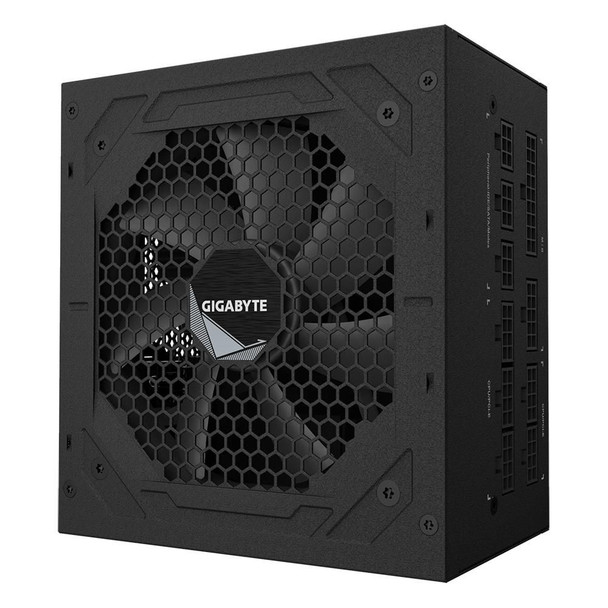

Gigabyte GP-UD750GM Power Supply Unit 750 W 20+4 GP-UD750GM
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- GP-UD750GM
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.
120MM SMART HYDRAULIC
BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
COMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
Design
Cooling type
Active
Fan diameter
12 cm
Fan location
Top
Number of fans
1 fan(s)
On/off switch
Yes
Product colour
Black
Logistics data
Harmonized System (HS) code
84733020
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Performance
80 PLUS certification
80 PLUS Gold
ATX version
2.31
Bearing technology
HYB
Mean time between failures (MTBF)
100000 Hour
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
ATX power connector (20+4 pin)
Yes
Cabling type
Modular
CPU power cable length
60 cm
CPU power connector (4+4 pin)
Yes
EPS power connector (4+4 pin)
Yes
Floppy disk drive cable length
15 cm
Floppy disk drive connector
Yes
Floppy drive power connector
1
Motherboard power cable length
61 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
8
PCI Express power cable length
60 cm
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power cable length
120, 500
Peripheral (Molex) power connectors (4-pin)
3
SATA power cable length
150, 300, 450, 600
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Combined power (+12V)
732 Watt
Combined power (+3.3V)
105 Watt
Combined power (+5V)
105 Watt
Combined power (+5Vsb)
15 Watt
Combined power (-12V)
3.6 Watt
Efficiency
90 %
Hold time
16 Millisecond
Input current
12 A
Max output current (+12V)
61 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
2.3 A
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Total power
750 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
14 cm
Product Height
8.6 cm
Product Width
15 cm
Vendor information
Brand Name
Gigabyte
Warranty
1 Year(s)
