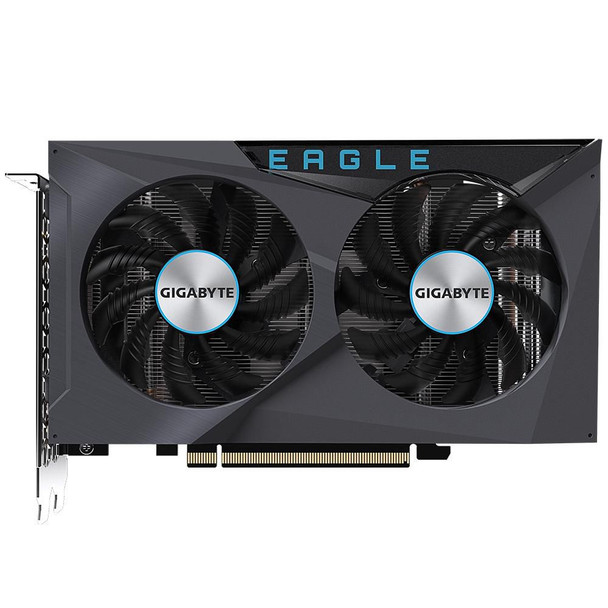

Gigabyte GV-R65XTEAGLE-4GD Radeon Rx 6500 Xt Eagle 4G GV-R65XTEAGLE-4GD

Intense 1080p Performance
AMD Radeon� RX 6500 XT graphics cards deliver serious 1080p gaming and impressive frame rates. The power of AMD RDNA� 2 architecture is unleashed with up to 16 powerful graphics compute units, coupled with all ultra-high bandwidth AMD Infinity Cache�, and up to 4GB of dedicated GDDR6 memory.

Vivid Visuals
With immersive gaming technologies and support for DirectX� 12 Ultimate, AMD Radeon� RX 6500 XT graphics cards draw you into the action. Experience gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX� Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX� technology features, optimized for AMD RDNA� 2 architecture.

Get A Boost In Frames
For Your Games
AMD FidelityFX� Super Resolution (FSR) technology boosts your frame rates by 2.4X on average across select FidelityFX Super Resolution supported games2 with high-quality, high-resolution gaming experiences delivered by AMD Radeon� RX 6000 Series graphics cards. Optimize your gaming experience between four presets, ranging from best visual fidelity to maximum performance.

The Best Gaming Experience
For The Best Gaming Os
AMD Radeon� graphics with Windows 11 enables the ultimate gaming experience through superior graphics, amazing performance, optimized security features. With support for DirectX� 12 Ultimate, Auto HDR, AMD Radeon graphics, and Radeon� software all stand ready to supercharge your gaming experience with Windows 11.

WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

HEAT PIPES AND COPPER PLATE
The shape of the pure copper heat pipe contacts with the GPU through a copper plate.

ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game�s requirements.

Design



Cooling technology



GIGABYTE WINDFORCE 2X


Cooling type



Active


Number of fans



2 fan(s)


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Memory



Discrete graphics card memory



4 GB


Graphics card memory type



GDDR6


Memory bandwidth (max)



144 GB/s


Memory bus



64 bit


Memory clock speed



18000 MHz


Package dimensions



Gross Weight (Package, kg)



1.17 kg


Packaging data



Manual



Yes


Performance



AMD FreeSync



Yes


DirectX version



1?2 Ultimate


Dual Link DVI



No


OpenGL version



4.6


TV tuner integrated



No


Ports & interfaces



DisplayPort version



1.4a


DisplayPorts quantity



1


HDMI ports quantity



1


HDMI version



2.1


Interface type



PCI Express 4.0


Power



Minimum system power supply



400 Watt


Supplementary power connectors



1x 6-pin


Processor



CUDA



No


Graphics processor



Radeon RX 6500 XT


Graphics processor family



AMD


Lithography



6 nm


Maximum displays per videocard



2


Maximum resolution



7680 x 4320 Pixels


Parallel processing technology support



Not supported


Processor boost clock speed



2815 MHz


Stream processors



1024


Product dimensions



Net Weight (Product, kg)



0.9 kg


Product Depth



19.2 cm


Product Height



3.8 cm


Product Width



11.7 cm


System requirements



Windows operating systems supported



Windows 10 x64, Windows 11 x64


Vendor information



Brand Name


Gigabyte


Warranty



1 Year(s)
