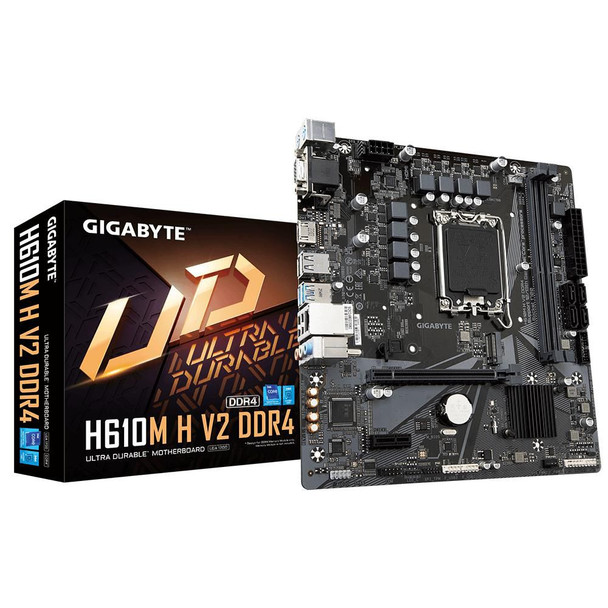

Gigabyte H610M H V2 DDR4 Rev. 1.0 Intel H610 Lga H610M H V2 DDR4

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- 6+1+1 Phases Low RDS(on) MOSFETs
- Solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board�s sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan

START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

EasyTune�
GIGABYTE's EasyTune� is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

BIOS



ACPI version



5.0


BIOS memory size



128 Mbit


BIOS type



UEFI AMI


Clear CMOS jumper



Yes


Desktop Management Interface (DMI) version



2.7


System Management BIOS (SMBIOS) version



2.7


Expansion slots



Number of M.2 (M) slots



1


PCI Express slots version



4.0


PCI Express x1 slots



1


PCI Express x16 slots



1


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel H610


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64


Graphics



Graphics card



HD Graphics


Graphics card family



Intel


Maximum resolution



4096 x 2160 Pixels


Internal I/O



ATX Power connector (24-pin)



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Front panel connector



Yes


Number of chassis fan connectors



2


Number of SATA III connectors



4


RGB LED pin header



Yes


Serial port headers



1


TPM connector



Yes


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



1


Memory



ECC



Yes


Maximum internal memory



64 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



2


Supported memory clock speeds



2133, 2400, 2666, 2933, 3000, 3200


Supported memory module capacities



4GB, 8GB, 16GB, 32GB


Supported memory types



DDR4-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Fast Ethernet, Gigabit Ethernet


Ethernet LAN



Yes


Wi-Fi



No


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging content



Bundled software



Norton Internet Security LAN bandwidth management software


Processor



Compatible processor series



Intel� Celeron�, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9, Intel� Pentium� Gold


Processor manufacturer



Intel


Processor socket



LGA 1700


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



21.5 cm


Product Width



23 cm


Rear panel I/O ports



Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.1


Headphone outputs



1


Line-in



Yes


Microphone in



Yes


PS/2 ports quantity



2


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


VGA (D-Sub) ports quantity



1


Storage controllers



Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Gigabyte


Warranty



1 Year(s)
