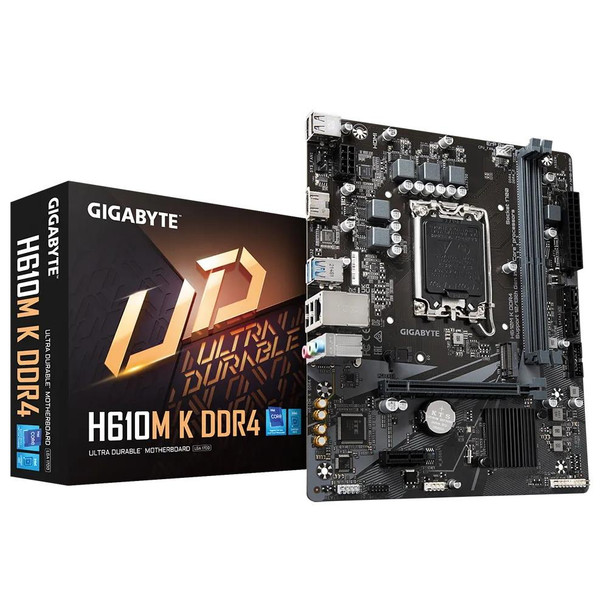

Gigabyte H610M K DDR4 Socket 1700/H610/Ddr4/S-Ata 6Gb/S/Micro Atx H610M K DDR4

Product Specifications



Product Name:

Gigabyte H610M K DDR4 (Socket 1700/H610/DDR4/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.gigabyte.com



Model Number:

H610M K DDR4



EAN:

4719331851675



UPC:

889523035498



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Chipset:

Intel H610 Express



CPU Interface:

Socket 1700



CPU Support:

https://www.gigabyte.com/Motherboard/H610M-K-DDR4-rev-10/support#support-cpu



RAM Technology:

DDR4 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR4 3200



Max. Memory Support:

64GB



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

2



M.2 Socket(s):

1 x PCIe Gen 3.0 x4



On-Board LAN:

Realtek GbE LAN chip (1 Gbps/100 Mbps)



On-Board Audio:

Realtek Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

4



Back USB 3.2 Port(s) Type-A Gen 1:

2



Back HDMI Port(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

1



USB 3.2 Header(s) Gen 1:

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Form Factor:

Micro ATX



Product Width:
5mm



Product Length:

226mm



Package Width:

24cm



Package Length:

27cm



Package Height:

5.5cm



Gross Weight:

0.64Kg



Special Features:

Supports 13th/12th Gen Intel Core Series Processors.
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs.
GbE LAN with Bandwidth Management.
NVMe PCIe 3.0 x4 M.2.
High Quality Audio Capacitors and Audio Noise Guard.
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
GIGABYTE APP Centre, Simple and Easy Use.
Anti-Sulphur Resistors Design.




Package Contents:

Motherboard
Manual
1 x SATA cable
IO Shield
