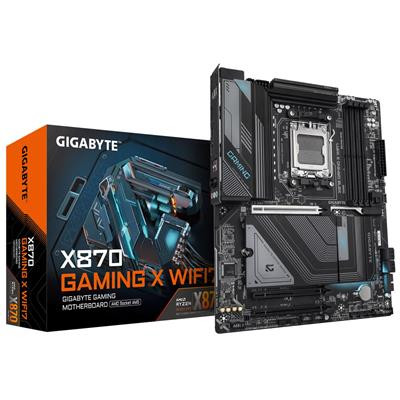

Gigabyte X870 GAMING X WIFI7 Socket Am5/X870/Ddr5/S-Ata 6Gb/S/Atx X870 GAMING X WIFI7

Product Group:

Motherboards



Manufacturer:

GIGABYTE



SKU:
5903


Product Specifications



Product Name:

Gigabyte X870 GAMING X WIFI7 (Socket AM5/X870/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.gigabyte.com



Model Number:

X870 GAMING X WIFI7



EAN:

4719331865368



UPC:

889523045497



Package Type:

Retail



Warranty:

3 Years



BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Chipset:

AMD X870



CPU Interface:

Socket AM5



CPU Support:

https://www.gigabyte.com/Motherboard/X870-GAMING-X-WIFI7/support#support-cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8000 (O.C.)



Max. Memory Support:

256GB



PCI Express 3.0 x16:

2



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

1 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4



On-Board LAN:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless NIC:

Wi-Fi 7



Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands



Bluetooth:

v5.4



On-Board Audio:

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

4



Back USB 3.2 Port(s) Type-A Gen 1:

3



Back USB 3.2 Port(s) Type-A Gen 2:

1



Back USB4 Port(s) Type-C:

2



Back HDMI Port(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

2 x Antenna Connectors (2T2R)



Back Button(s):

1 x Q-Flash Plus



24-pin ATX Power:

1



8-pin ATX Power:

1



4-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



USB 3.2 Header(s) Gen 2x2:

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):

3 x Addressable RGB Gen2 LED Strip Headers
1 x RGB LED Strip Header



Internal Button(s):

1 x Power
1 x Reset



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27cm



Package Length:

34cm



Package Height:

8cm



Gross Weight:

2.11Kg



Special Features:

AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.
Digital twin 16+2+2 phases VRM solution.
Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
EZ-Latch PqB4 Type-C with DP-Alt, HDMI.



Package Contents:

Motherboard
Manual
Quick Installation Guide
1 x Antenna
2 x SATA Cables
1 x G Connector
