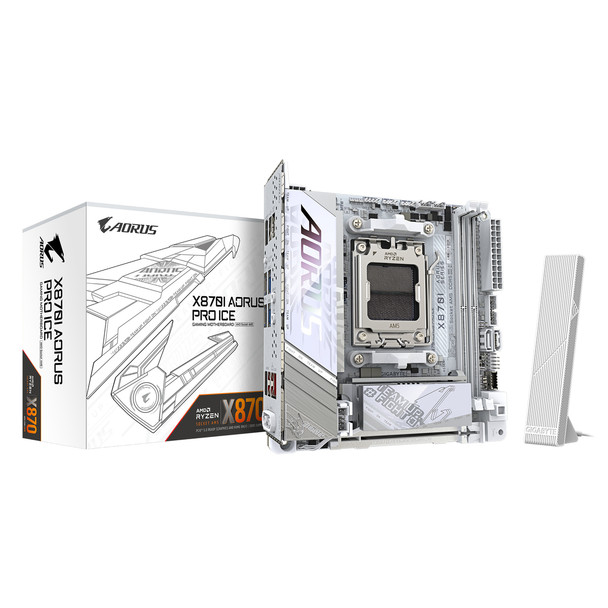

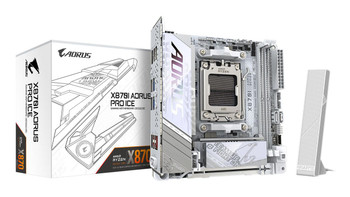

GIGABYTE X870I AORUS PRO ICE Motherboard - Supports AMD Ryzen 9000 Series CPUs 8 X870I AORUS PRO ICE

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Features


AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors


Digital twin 8+2+1 phases VRM solution


Dual Channel DDR52*DIMMs with AMD EXPO Memory Module Support


PCIe Gen5 x16 with PCIe UD Slot & EZ-Latch Plus


Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4


Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext


Extended Connectivity: USB4 Type-C with DP-Alt, HDMI


Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna



Processor


Processor socket

Socket AM5


Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series


Supported processor sockets

Socket AM5


Processor manufacturer

AMD



Memory


Supported memory types

DDR5-SDRAM


Unbuffered memory

Yes


ECC ompatibility

Non-ECC


Supported memory clock speed (max)

8400 MHz


Maximum internal memory per slot

64 GB


Number of memory slots

2


Maximum internal memory
8 GB


Memory slots type

DIMM


Supported memory clock speeds

8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz


Memory channels

Dual-channel



Rear panel I/O ports


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

2


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


DisplayPort version

1.4


WiFi-AP antenna jack

2


Headphone outputs

1


Ethernet LAN (RJ-45) ports

1


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

2


HDMI version

2.1


USB4 Gen 2x2 ports quantity

1


Line-in

Yes


USB 2?0 ports quantity

2



Internal I/O


USB 2?0 connectors

1


Number of CPU fan connectors

2


USB 3?2 Gen 1 (3?1 Gen 1) connectors

1


CPU fan connector

Yes


USB 3?2 Gen 2 (3?1 Gen 2) connectors

1


Front panel connector

Yes


Number of RGB LED pin headers

3


Front panel audio connector

Yes


ATX Power connector (24-pin)

Yes


Chassis intrusion connector

Yes


Number of EPS power connectors (8-pin)

1


Number of SATA III connectors

2


Number of chassis fan connectors

1


EPS power connector (8-pin)

Yes


RGB LED pin header

Yes


Number of water pump connectors

1



Graphics


Parallel processing technology support

Not supported


Maximum resolution

4096 x 2160 pixels


HDCP

Yes


DirectX version
.0



Weight & dimensions


Height

35 mm


Width
0 mm


Depth
0 mm



BIOS


ACPI version

5.0


System Management BIOS (SMBIOS) version

2.7


Desktop Management Interface (DMI) version

2.7


BIOS type

UEFI AMI


BIOS memory size

256 Mbit


Clear CMOS jumper

Yes



Packaging content


Antenna included

Yes


Batteries included

Yes


Screws included

Yes


Bundled software

Norton Internet Security (OEM version) LAN bandwidth management software



Storage controllers


Supported storage drive types

HDD & SSD


Number of storage drives supported

4


RAID support

Yes


RAID levels

0, 1


Supported storage drive interfaces

M.2, SATA III


Number of HDDs supported

2



Logistics data


Country of origin

Taiwan


Products per shipping (inner) case

1 pc(s)



Technical details


Warranty period

3 year(s)



Network


LAN controller

Realtek RTL8125


Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)


Bluetooth

Yes


Wi-Fi

Yes


Top Wi-Fi standard

Wi-Fi 7 (802.11be)


Ethernet LAN

Yes


WLAN controller model

Realtek RTL8922AE


Ethernet interface type

2.5 Gigabit Ethernet


Bluetooth version

5.4



Expansion slots


Number of M?2 (M) slots

2


PCI Express x16 (Gen 5?x) slots

1


1st M?2 largest key size

2280


2nd M?2 largest key size

2280


2nd M?2 highest PCI Express generation

4.0


1st M?2 highest PCI Express generation

5.0



Battery


Battery technology

Lithium-Manganese Dioxide (LiMnO2)


Battery type

CR2032


Battery weight

3 g


Number of battery cells

1


Lithium weight per battery

0.07 g



Features


Motherboard chipset

AMD X870


PC health monitoring

Fan, Temperature, Voltage, Water cooling


Windows operating systems supported

Windows 11 x64


Product colour

White


Motherboard chipset family

AMD


Power source type

ATX


Component for

PC


Audio chip

Realtek ALC4080


Audio output channels

7.1 channels


Motherboard form factor

Micro ITX



Packaging data


Package height

95 mm


Package depth

227 mm


Package width

235 mm


Package weight

1.2 kg
