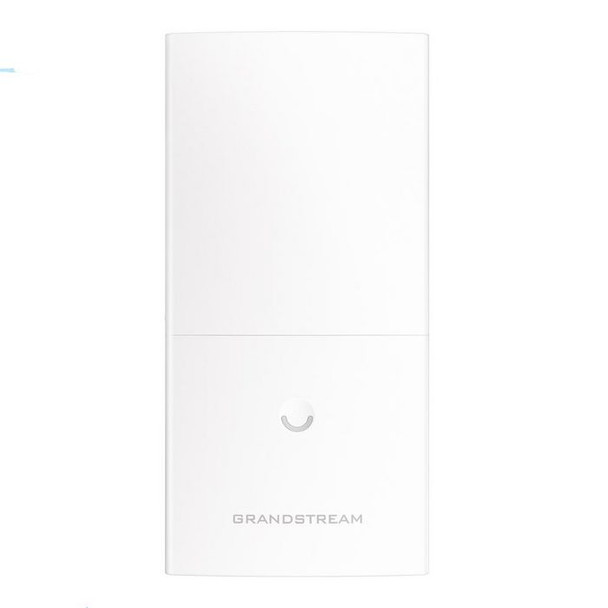

Grandstream GWN7600LR Wireless Access Point 867 GWN7600LR

The GWN7600LR is a powerful outdoor, long-range WiFi Access Point featuring weatherproof casing and heat resistent technology. It comes equipped with dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and extended WiFi coverage range of up to 300 meters. To ensure easy installation and management, the GWN7600LR uses a controller-less distributed network management design and an embedded controller within the product�s web user interface. This allows each access point to manage a network of up to 30 GWN APs independently without needing separate controller hardware/software and without a single point-of-failure. Its easy installation and management features packed with extra coverage support and advanced performance features, make the GWN7600LR an ideal outdoor access point for mid-size wireless network deployments.

Antenna



Antenna features



Integrated antenna


Antenna gain level (max)



5 dBi


Antenna type



Internal


Antennas quantity



4


Design



Certification



FCC, CE, RCM, IC


Internal



No


International Protection (IP) code



IP66


LED indicators



Status


Placement



Pole


Product colour



White


Features



2.4 GHz



Yes


5 GHz



Yes


Channel bandwidth



80 MHz


Ethernet LAN data rates



10, 100, 1000


Frequency band



2400 - 24835, 5150 - 5250, 5725 - 5850 GHz


Maximum data transfer rate



867 Mbit/s


Maximum data transfer rate (5 GHz)



867 Mbit/s


Maximum outdoor range



300 m


MIMO



Yes


MIMO type



Multi User MIMO


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at


Quality of Service (QoS) support



Yes


Transmitting power



26 dBmW


Operational conditions



Operating temperature (T-T)



-30 - 60 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-30 - 70 �C


Package dimensions



Depth (package,cm)



18.7 cm


Gross Weight (Package, kg)



1.16 kg


Height (package,cm)



9.7 cm


Packaging content



Mounting kit



Yes


Number of products included



1 pc(s)


Quick start guide



Yes


Packaging data



Package volume



423 cm�


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Power



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.89 kg


Product Depth



3.5 cm


Product Height



29 cm


Product Width



15 cm


Protocols



Supported network protocols



IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM


Security



Number of SSID supported



16


Security algorithms



WEP, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP


Service Set Identifier (SSID) features



Hidden SSID


Vendor information



Brand Name


Grandstream


Warranty



1 Year(s)
