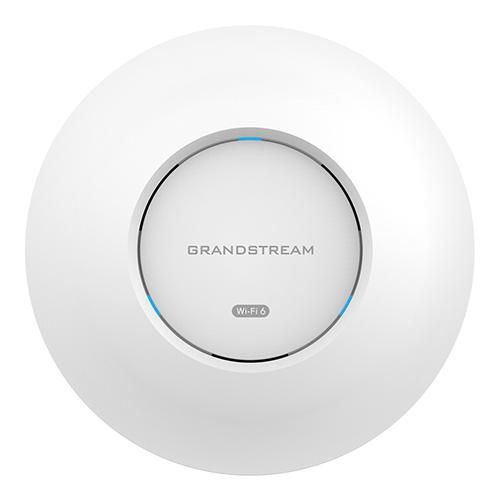

Grandstream GWN7660 Wireless Access Point 1770 GWN7660

The GWN7660 is an enterprise-grade 802.11ax Wi-Fi 6 access point and offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput, that allows businesses to build next-generation Wi-Fi networks for high-density environments.

The GWN7660 offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product�s Web user interface. The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream�s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream�s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Antenna



Antenna gain level (max)



4 dBi


Antenna type



Internal


Design



Cable lock slot



Yes


Cable lock slot type



Kensington


Certification



FCC, CE, RCM, IC


LED indicators



Status


Placement



Wall


Product colour



White


Features



2.4 GHz



Yes


5 GHz



Yes


Ethernet LAN data rates



10, 100, 1000


Maximum data transfer rate



1770 Mbit/s


Maximum data transfer rate (2.4 GHz)



573.5 Mbit/s


Maximum data transfer rate (5 GHz)



1201 Mbit/s


Maximum indoor range



175 m


MIMO



Yes


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Quality of Service (QoS) support



Yes


VLAN support



Yes


Logistics data



Harmonized System (HS) code



85176990


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage temperature (T-T)



-10 - 60 �C


Package dimensions



Depth (package,cm)



22 cm


Gross Weight (Package, kg)



1.04 kg


Height (package,cm)



7.9 cm


Width (package,cm)



22.85 cm


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Power



Power consumption (max)



9 Watt


Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.8 kg


Product Depth



18.04 cm


Product Height



4.08 cm


Product Width



18.04 cm


Protocols



Supported network protocols



IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM


Security



Number of SSID supported



32


Security algorithms



WEP, WPA, WPA2, WPA2-PSK, WPA3


Vendor information



Brand Name


Grandstream


Warranty



1 Year(s)
