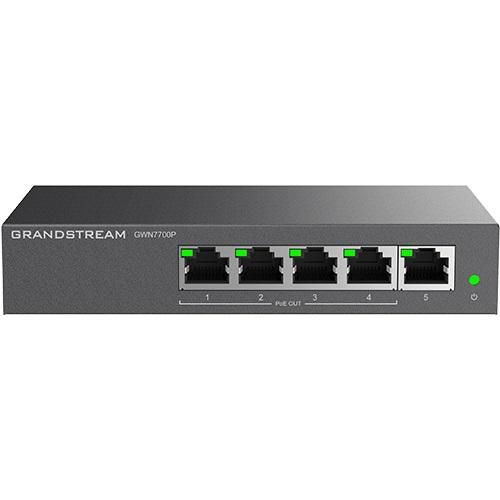

Grandstream GWN7700P Network Switch Unmanaged 10G GWN7700P

Data transmission



Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



2 entries


Switching capacity



10 Gbit/s


Design



Certification



FCC, CE, RCM, IC, UKCA


Housing material



Metal


LED indicators



Activity, Link


Product colour



Black


Management features



Quality of Service (QoS) support



Yes


Switch type



Unmanaged


Multicast features



Multicast support



Yes


Network



Active link detection



Yes


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Ethernet LAN data rates



10, 100, 1000


Flow control support



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Depth (package,cm)



23 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



5.1 cm


Width (package,cm)



19 cm


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



DC input voltage



48 V


Input current



1.22 A


Power consumption (max)



2 Watt


Power source



DC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



4


Power over Ethernet (PoE) power per port



30 Watt


Total Power over Ethernet (PoE) budget



60 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



14.5 cm


Product Height



2.7 cm


Product Width



8 cm


Security



Authentication type



IEEE 802.1x


IGMP snooping



Yes


MAC address filtering



Yes


Vendor information



Brand Name


Grandstream


Warranty



1 Year(s)
