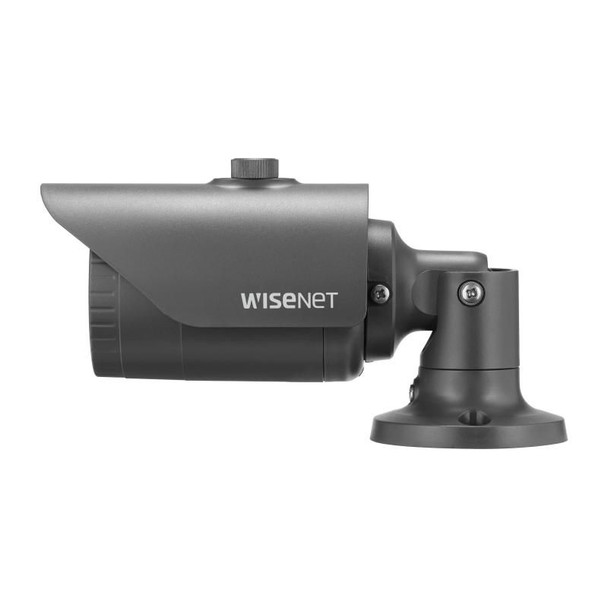

Hanwha HCO-6020R 2MP Analog HD IR Bullet HCO-6020R

Wisenet HD+ 2MP, Full HD(1080p) 30fps IR outdoor bullet camera, AHD/TVI/CVI/CVBS, Fixed Lens (4mm), 120 dB true WDR, Day & Night (ICR), 12VDC, IR distance 30m, IP66/IK10

Audio



Signal-to-Noise Ratio (SNR)



120 dB


Camera



Camera shutter speed



1 - 1/12000 Second Second


Lens viewing angle, diagonal



104.5 �


Lens viewing angle, horizontal



87.6 �


Lens viewing angle, vertical



46.4 �


Minimum illumination



0.17 lx


Viewing angle, diagonal



104.5 �


Viewing angle, horizontal



87.6 �


Viewing angle, vertical



46.4 �


White balance



ATW, AWC, Indoor, Manual, Outdoor


Design



Form factor



Bullet


Housing material



Plastic


International Protection (IP) code



IP66


Mounting type



Ceiling/wall


Product colour



Grey


Protection features



Vandal proof


Features



NDAA Compliance



Yes


Image sensor



Number of effective pixels (H x V)



1945 x 1097 Pixels


Optical sensor size



1/2.8 "


Sensor type



CMOS


Lens system



Fixed focal length



4 mm


Focal length range



4 mm


Focus



Manual


Maximum aperture number



1.6


Night vision



Night vision



Yes


Night vision distance



30 m


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



-30 - 55 �C


Package dimensions



Depth (package,cm)



28.5 cm


Gross Weight (Package, kg)



4.62 kg


Height (package,cm)



11 cm


Width (package,cm)



12 cm


Packaging content



Number of cameras



1


Performance



Connectivity technology



Wired


Day/night mode



Yes


Maximum operating distance



500 m


Placement supported



Indoor & outdoor


Type



CCTV security camera


Wide Dynamic Range (WDR)



Yes


Power



Power consumption (max)



5.4 Watt


Power source type



AC, DC


Product dimensions



Net Weight (Product, kg)



0.51 kg


Product Depth



12 cm


Product Height



16.52 cm


Product Width



5.86 cm


Security



Video motion detection



Yes


Vendor information



Brand Name


Hanwha


Warranty



3 Year(s)


Video



Back Light Compensation (BLC)



Yes


Frame rate



30 fps


Gain control type



Auto


Highlight Compensation (HLC)



Yes


Maximum resolution



1945 x 1097 Pixels


Noise reduction



Yes


Privacy masking



Yes


Supported graphics resolutions



1920 x 1080 (HD 1080)


Supported video modes



1080p


Total megapixels



2 MP


Weight & dimensions



Diameter



5.86 cm
