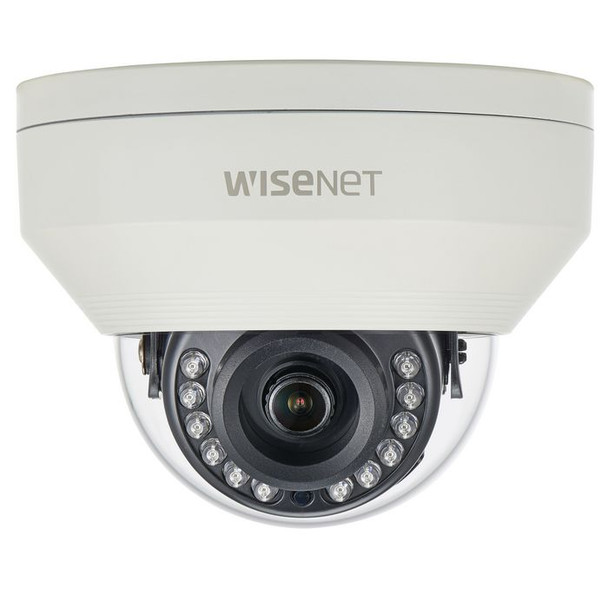

Hanwha HCV-7010RA 4MP Wisenet HD+ Outdoor Dome HCV-7010RA

Wisenet HD+ 4MP IR outdoor dome camera, AHD or CVBS formats are available, 2.8 mm fixed lens, Day & Night (ICR), 12VDC, IR distance 20m, IP66/IK10

QHD (2560 x 1440, 30fps) resolution

0.26 Lux@F1.8 (Color),0 Lux (B/W : IR LED on)

Built-in 2.8mm fixed lens

Day & Night (ICR), DWDR, Motion detection

IR Viewable Length 20m

Transmission distance max.500m

Easy installation (Plug & play), IP66, IK10


Camera
Angle of rotation
355 °

Camera shutter speed
1/30 - 1/12000 Second

Camera shutter type
Electronic

Lens viewing angle, diagonal
122.01 °

Lens viewing angle, horizontal
107.48 °

Lens viewing angle, vertical
59.47 °

Pan range
0 - 350 °

Tilt angle range
0 - 67 °

Viewing angle, diagonal
122.01 °

Viewing angle, horizontal
107.48 °

Viewing angle, vertical
59.47 °

White balance
ATW/AWC/Indoor/Outdoor

Design
Form factor
Dome

Housing material
Aluminium

IK code
IK10

International Protection (IP) code
IP66

Mounting type
Ceiling/wall

Product colour
Ivory

Features
NDAA Compliance
Yes

Image sensor
Number of sensors
1

Optical sensor size
1/3 "

Sensor type
CMOS

Legal Information
EU ECCN Code
N/A

UNSPSC Code
46171610

US ECCN Code
EAR99

Lens system
Fixed focal length
2.8 mm

Focal length range
2.8 mm

Maximum aperture number
1.8

Network
Bluetooth
No

Ethernet LAN
No

Wi-Fi
No

Night vision
LED type
IR

Night vision
Yes

Night vision distance
20 m

Operational conditions
Operating temperature (T-T)
-30 - 55 °C

Package dimensions
Depth (package,cm)
16 cm

Gross Weight (Package, kg)
0.09875 kg

Height (package,cm)
13.2 cm

Width (package,cm)
16.3 cm

Packaging content
Number of cameras
1

Performance
Connectivity technology
Wired

Day/night mode
Yes

Maximum operating distance
500 m

Placement supported
Indoor & outdoor

Plug and Play
Yes

Type
CCTV security camera

Wide Dynamic Range (WDR)
Yes

Power
DC output voltage
12

Power consumption (max)
5 Watt

Power source type
DC

Product dimensions
Net Weight (Product, kg)
0.672 kg

Product Depth
16.1 cm

Product Height
9.17 cm

Product Width
12.03 cm

Security
Video motion detection
Yes

Vendor information
Brand Name
Hanwha

Warranty
3 Year(s)

Video
Back Light Compensation (BLC)
Yes

Digital Wide Dynamic Range (DWDR)
Yes

Frame rate
30 fps

Highlight Compensation (HLC)
Yes

Maximum resolution
2560 x 1440 Pixels

Noise reduction
Yes

Noise reduction technology
2D noise reduction

Privacy masking
Yes

Supported graphics resolutions
2560 x 1440

Total megapixels
4 MP
