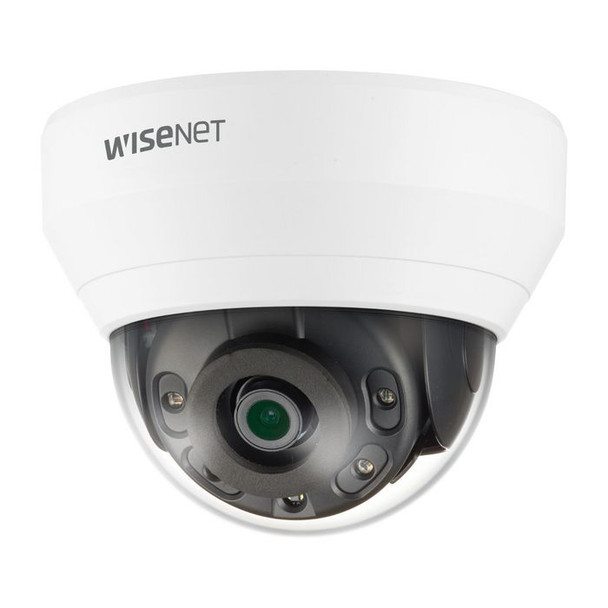

Hanwha QND-7012R 4MP IR Dome QND-7012R

Audio



Built-in microphone



Yes


Sample rate



8 kHz


Voice codecs



G.711, G.711ulaw, G.726


Camera



Angle of rotation



355 �


Camera pan control



Yes


Camera shutter speed



1/5 - 1/12000 Second


Camera shutter type



Electronic


Camera tilt control



Yes


Lens viewing angle, diagonal



122 �


Lens viewing angle, horizontal



107.5 �


Lens viewing angle, vertical



59.7 �


Pan range



0 - 350 �


Tilt angle range



0 - 67 �


Viewing angle, diagonal



122 �


Viewing angle, horizontal



107.5 �


Viewing angle, vertical



59.7 �


White balance



ATW, AWC, Indoor, Manual, Outdoor


Design



Form factor



Dome


Housing material



Plastic


IK code



IK08


Mounting type



Ceiling/wall


Product colour



White


Features



NDAA Compliance



Yes


Image sensor



Number of sensors



1


Optical sensor size



1/3 "


Sensor type



CMOS


Lens system



Detect distance



37.5 m


Fixed focal length



2.8 mm


Fixed focus



Yes


Focal length range



2.8 mm


Identify distance



3.8 m


Maximum aperture number



2


Number of lenses



1


Observe distance



15 m


Recognize distance



7.5 m


Network



Bluetooth



No


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.1x, IEEE 802.3af


Streaming method



Multicast, Unicast


Supported network protocols



IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP


Wi-Fi



No


Night vision



Infra-red wavelength



850 nm


LED type



IR


Night vision



Yes


Night vision distance



20 m


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-10 - 55 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-30 - 60 �C


Package dimensions



Depth (package,cm)



14.3 cm


Gross Weight (Package, kg)



0.056125 kg


Height (package,cm)



11.8 cm


Width (package,cm)



14.3 cm


Packaging content



Number of cameras



1


Performance



Alarm input/output



Yes


Connectivity technology



Wired


Day/night mode



Yes


Infrared (IR) cut-off filter



Yes


Placement supported



Indoor


PTZ control



No


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Composite video out



1


Ethernet LAN (RJ-45) ports



1


Power



DC output voltage



12


Power consumption (max)



7.1 Watt


Power consumption (Power over Ethernet (PoE))



7.9 Watt


Power consumption (typical)



5.1 Watt


Power source type



DC, PoE


Product dimensions



Net Weight (Product, kg)



0.276 kg


Product Height



8.6 cm


Security



HTTPS encryption



Yes


Intelligent Video Surveillance (IVS) system features



Defocus


IP address filtering



Yes


Video motion detection



Yes


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



256 MB


Internal memory



512 MB


Maximum memory card size



128 GB


Vendor information



Brand Name


Hanwha


Warranty



5 Year(s)


Video



Back Light Compensation (BLC)



Yes


Bit rate control



Constant Bit Rate (CBR)/Variable Bit Rate (VBR)


Flip & mirror



Yes


Frame rate



30 fps


Maximum resolution



2560 x 1440 Pixels


Noise reduction



Yes


Privacy masking



Yes


Total megapixels



4 MP


Video compression formats



H.264, H.265, M-JPEG


Video streaming



Yes


Weight & dimensions



Diameter



11 cm
