Hanwha

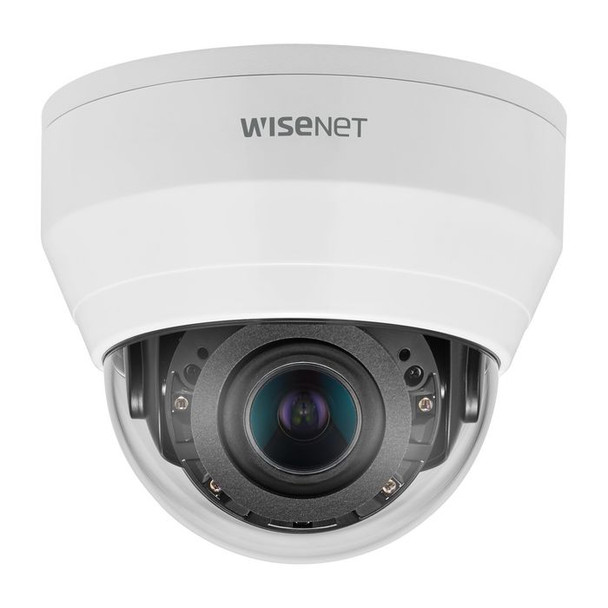

Hanwha QND-8080R 5MP IR Indoor Dome QND-8080R
- UPC:
- 8801089163172
- MPN:
- QND-8080R
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 7-10 working days)
Description
Wisenet Q network IR indoor dome camera, 5MP @30fps, 3.2 ~ 10.0mm motorized vari-focal lens (3.1x) (100.3�~31.2�), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, 120dB WDR, Auto Day & Night (ICR), IR viewable length 20m, Advanced Video Analytics, Hallway View, Motion detection, LDC (Lens Distortion Correction), Bi-directional audio and SD/SDHC/SDXC slot, CVBS for easy installation, PoE
Camera
Adjustment shutter speed
Manual
Camera shutter type
Electronic
Lens viewing angle, diagonal
133.1 �
Lens viewing angle, horizontal
100.3 �
Lens viewing angle, vertical
72.3 �
Minimum illumination
0.15 lx
Pan range
0 - 350 �
Tilt angle range
0 - 67 �
Viewing angle, diagonal
133.1 �
Viewing angle, horizontal
100.3 �
Viewing angle, vertical
72.3 �
White balance
ATW, AWC, Indoor, Manual, Outdoor
Design
Form factor
Dome
Housing material
Aluminium, Plastic
Mounting type
Ceiling
Product colour
White
Features
NDAA Compliance
Yes
Image sensor
Number of effective pixels (H x V)
2592 x 1944 Pixels
Optical sensor size
1/2.8 "
Progressive scan
Yes
Sensor type
CMOS
Lens system
Fixed focus
Yes
Focal length range
3.2 - 10 mm
Maximum aperture number
1.6
Network
Bluetooth
No
Ethernet interface type
10 Gigabit Ethernet, 100 Gigabit Ethernet
Ethernet LAN
Yes
Networking standards
IEEE 802.1x
Number of users
6 user(s)
Quality of Service (QoS) support
Yes
Streaming method
Multicast, Unicast
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Wi-Fi
No
Night vision
Infra-red wavelength
850 nm
LED type
IR
Night vision
Yes
Night vision distance
20 m
Operational conditions
Operating relative humidity (H-H)
0 - 90 %
Operating temperature (T-T)
-30 - 55 �C
Storage relative humidity (H-H)
0 - 90 %
Storage temperature (T-T)
-30 - 60 �C
Package dimensions
Depth (package,cm)
17.5 cm
Gross Weight (Package, kg)
0.76625 kg
Height (package,cm)
17 cm
Width (package,cm)
17.5 cm
Packaging content
Number of cameras
1
Performance
Alarm input/output
Yes
Connectivity technology
Wired
Day/night mode
Yes
Languages support
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish
Placement supported
Outdoor
PTZ control
No
Type
IP security camera
Wide Dynamic Range (WDR)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power consumption (max)
8.9 Watt
Power consumption (typical)
6.6 Watt
Power source type
PoE
Product dimensions
Net Weight (Product, kg)
0.67 kg
Product Depth
21 cm
Product Height
10.2 cm
Product Width
12.03 cm
Security
Active tampering alarm
Yes
Alert notification type
E-mail
IP address filtering
Yes
Video motion detection
Yes
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size
128 GB
System requirements
Mac operating systems supported
Y, Yes
Windows operating systems supported
Y, Yes
Vendor information
Brand Name
Hanwha
Warranty
5 Year(s)
Video
Back Light Compensation (BLC)
Yes
Flip & mirror
Yes
Gain control type
Manual
Maximum resolution
2592 x 1944 Pixels
Noise reduction
Yes
Supported graphics resolutions
640 x 360, 640 x 480 (VGA), 720 x 480, 768 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944
Total megapixels
5 MP
Video compression formats
H.264, H.265, M-JPEG
Video intelligence analytic
Yes
Video streaming
Yes
Weight & dimensions
Diameter
12.03 cm
