Hanwha

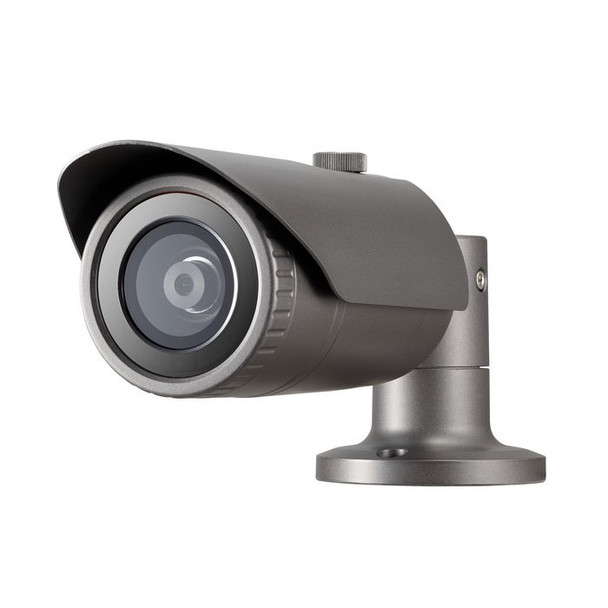

Hanwha QNO-7022R 4MP IR Bullet QNO-7022R
- UPC:
- 8801089202420
- MPN:
- QNO-7022R
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Wisenet Q network IR outdoor vandal bullet camera, 4MP @30fps, 3.6mm fixed lens (81�), triple codec H.265/H.264/MJPEG with WiseStream, Multiple streaming, 120dB WDR, True Day & Night (ICR), IR viewable length 25m, Motion detection, Tampering, Defocus detection, Hallway View, 1-way audio and microSD/SDHC/SDXC slot, LDC support (Lens Distortion Correction), IP66, IK10, PoE/12VDC
Audio
Sample rate
8 kHz
Voice codecs
G.711, G.711ulaw, G.726
Camera
Camera pan control
No
Camera shutter type
Electronic
Camera tilt control
No
Lens viewing angle, diagonal
92 �
Lens viewing angle, horizontal
78.2 �
Lens viewing angle, vertical
41.2 �
Viewing angle, diagonal
92 �
Viewing angle, horizontal
78.2 �
Viewing angle, vertical
41.2 �
White balance
ATW, AWC, Indoor, Manual, Outdoor
Design
Form factor
Bullet
Housing material
Aluminium
IK code
IK10
International Protection (IP) code
IP66
Mounting type
Ceiling/wall
Product colour
Grey
Protection features
Dust resistant, Vandal proof, Water resistant
Features
NDAA Compliance
Yes
Image sensor
Number of sensors
1
Optical sensor size
1/3 "
Sensor type
CMOS
Lens system
Detect distance
63 m
Focal length range
4 mm
Identify distance
6.3 m
Maximum aperture number
1.6
Number of lenses
1
Observe distance
25.2 m
Recognize distance
12.6 m
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Networking standards
IEEE 802.1x
Number of users
6 user(s)
Quality of Service (QoS) support
Yes
Streaming method
Multicast, Unicast
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Wi-Fi
No
Night vision
Infra-red wavelength
850 nm
LED type
IR
Night vision
Yes
Night vision distance
25 m
Operational conditions
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
-40 - 55 �C
Storage relative humidity (H-H)
0 - 95 %
Storage temperature (T-T)
-40 - 60 �C
Package dimensions
Depth (package,cm)
12.2 cm
Gross Weight (Package, kg)
1.096 kg
Height (package,cm)
11 cm
Width (package,cm)
28.5 cm
Packaging content
Number of cameras
1
Performance
Alarm input/output
Yes
Connectivity technology
Wired
Day/night mode
Yes
Placement supported
Outdoor
PTZ control
No
Type
IP security camera
Wide Dynamic Range (WDR)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
DC output voltage
12
Power consumption (Power over Ethernet (PoE))
10.7 Watt
Power consumption (typical)
8 Watt
Power source type
DC, PoE
Product dimensions
Net Weight (Product, kg)
0.99 kg
Security
Alert notification type
E-mail
Anti-flicker
Yes
HTTPS encryption
Yes
IP address filtering
Yes
Mirror
Yes
Password protection
Yes
Password protection type
User
Security algorithms
HTTPS, SNMPv2, SNMPv3
Video motion detection
Yes
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
256 MB
Maximum memory card size
128 GB
Vendor information
Brand Name
Hanwha
Warranty
5 Year(s)
Video
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirror
Yes
Frame rate
30 fps
Maximum resolution
2560 x 1440 Pixels
Noise reduction
Yes
Privacy masking
Yes
Supported graphics resolutions
320 x 240, 640 x 480 (VGA), 720 x 480, 800 x 448, 800 x 480 (WVGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Total megapixels
4 MP
Video compression formats
H.264, H.265, M-JPEG
Video formats supported
H.264, H.265, M-JPEG
Video streaming
Yes
Weight & dimensions
Diameter
7 cm
Length
24.6 cm
View AllClose
Audio
Sample rate
8 kHz
Voice codecs
G.711, G.711ulaw, G.726
Camera
Camera pan control
No
Camera shutter type
Electronic
Camera tilt control
No
Lens viewing angle, diagonal
92 �
Lens viewing angle, horizontal
78.2 �
Lens viewing angle, vertical
41.2 �
Viewing angle, diagonal
92 �
Viewing angle, horizontal
78.2 �
Viewing angle, vertical
41.2 �
White balance
ATW, AWC, Indoor, Manual, Outdoor
Design
Form factor
Bullet
Housing material
Aluminium
IK code
IK10
International Protection (IP) code
IP66
Mounting type
Ceiling/wall
Product colour
Grey
Protection features
Dust resistant, Vandal proof, Water resistant
Features
NDAA Compliance
Yes
Image sensor
Number of sensors
1
Optical sensor size
1/3 "
Sensor type
CMOS
Lens system
Detect distance
63 m
Focal length range
4 mm
Identify distance
6.3 m
Maximum aperture number
1.6
Number of lenses
1
Observe distance
25.2 m
Recognize distance
12.6 m
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Networking standards
IEEE 802.1x
Number of users
6 user(s)
Quality of Service (QoS) support
Yes
Streaming method
Multicast, Unicast
Supported network protocols
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Wi-Fi
No
Night vision
Infra-red wavelength
850 nm
LED type
IR
Night vision
Yes
Night vision distance
25 m
Operational conditions
Operating relative humidity (H-H)
0 - 95 %
Operating temperature (T-T)
-40 - 55 �C
Storage relative humidity (H-H)
0 - 95 %
Storage temperature (T-T)
-40 - 60 �C
Package dimensions
Depth (package,cm)
12.2 cm
Gross Weight (Package, kg)
1.096 kg
Height (package,cm)
11 cm
Width (package,cm)
28.5 cm
Packaging content
Number of cameras
1
Performance
Alarm input/output
Yes
Connectivity technology
Wired
Day/night mode
Yes
Placement supported
Outdoor
PTZ control
No
Type
IP security camera
Wide Dynamic Range (WDR)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
DC output voltage
12
Power consumption (Power over Ethernet (PoE))
10.7 Watt
Power consumption (typical)
8 Watt
Power source type
DC, PoE
Product dimensions
Net Weight (Product, kg)
0.99 kg
Security
Alert notification type
Anti-flicker
Yes
HTTPS encryption
Yes
IP address filtering
Yes
Mirror
Yes
Password protection
Yes
Password protection type
User
Security algorithms
HTTPS, SNMPv2, SNMPv3
Video motion detection
Yes
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
256 MB
Maximum memory card size
128 GB
Vendor information
Brand Name
Hanwha
Warranty
5 Year(s)
Video
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirror
Yes
Frame rate
30 fps
Maximum resolution
2560 x 1440 Pixels
Noise reduction
Yes
Privacy masking
Yes
Supported graphics resolutions
320 x 240, 640 x 480 (VGA), 720 x 480, 800 x 448, 800 x 480 (WVGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Total megapixels
4 MP
Video compression formats
H.264, H.265, M-JPEG
Video formats supported
H.264, H.265, M-JPEG
Video streaming
Yes
Weight & dimensions
Diameter
7 cm
Length
24.6 cm
