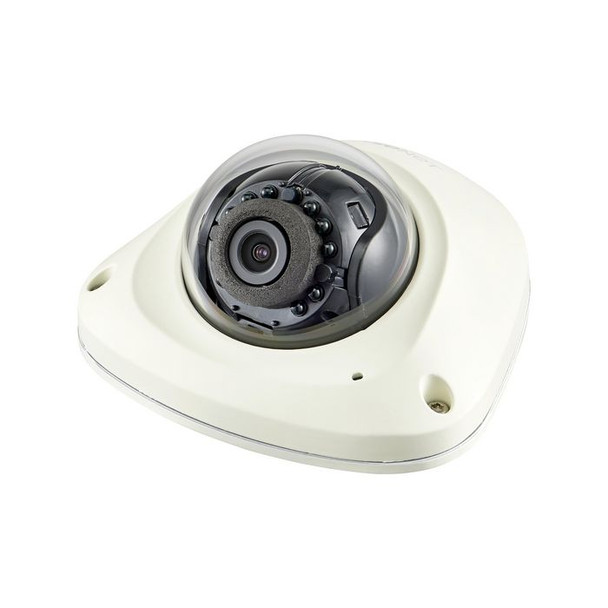

Hanwha QNV-6023R 2MP Mobile IR Vandal Dome QNV-6023R

Wisenet Q network IR outdoor vandal flateye camera, 2MP @60fps, 3.6mm fixed lens (94.8�), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, 120dB WDR, True Day & Night (ICR), IR viewable length 15m, Motion detection, Tampering, Defocus detection, Hallway View, 1-way audio and microSD/SDHC/SDXC slot, LDC support (Lens Distortion Correction), IP66, IK10, NEMA4X, PoE

Audio



Audio formats supported



ADPCM, G.711, G.711 ?-law, G.726


Built-in microphone



Yes


Camera



Angle of rotation



90 �


Auto flip



Yes


Camera pan control



Yes


Camera shutter speed



1/5 - 1/12000 Second


Camera shutter type



Electronic


Camera tilt control



Yes


Lens viewing angle, diagonal



114.3 �


Lens viewing angle, horizontal



94.8 �


Lens viewing angle, vertical



49.3 �


Pan range



-5 - 5 �


Tilt angle range



0 - 67 �


Viewing angle, diagonal



114.3 �


Viewing angle, horizontal



94.8 �


Viewing angle, vertical



49.3 �


White balance



ATW, AWC, Indoor, Manual, Outdoor


Design



Form factor



Dome


Housing material



Aluminium


IK code



IK10


International Protection (IP) code



IP66


Product colour



Ivory


Protection features



Vandal proof


Features



NDAA Compliance



Yes


Image sensor



Number of effective pixels (H x V)



1920 x 1080 Pixels


Optical sensor size



1/2.8 "


Sensor type



CMOS


Lens system



Closest focusing distance



0.5 m


Fixed focus



Yes


Focal length range



3.6 mm


Maximum aperture number



2


Management features



Web browser



Yes


Web-based management



Yes


Network



Ethernet LAN



Yes


Networking standards



IEEE 802.3at


Number of users



20 user(s)


Quality of Service (QoS) support



Yes


Streaming method



Multicast, Unicast


Supported network protocols



IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP


Wi-Fi



No


Night vision



Infra-red wavelength



850 nm


LED type



IR


Night vision



Yes


Night vision distance



15 m


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



-30 - 55 �C


Storage relative humidity (H-H)



0 - 90 %


Storage temperature (T-T)



-50 - 60 �C


Package dimensions



Depth (package,cm)



17.5 cm


Gross Weight (Package, kg)



0.4 kg


Height (package,cm)



16.6 cm


Width (package,cm)



17.5 cm


Packaging content



Number of cameras



1


Performance



Certification



IP66, IK10, NEMA4X EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014 EN61000-4-6:2009, EN50155:2007 EN45545-2, NFPA130, BSS7239, E-mark (TBD)


Connectivity technology



Wired


Day/night mode



Yes


Placement supported



Outdoor


PTZ control



No


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Composite video out



1


Ethernet LAN (RJ-45) ports



1


Microphone in



Yes


Power



Power consumption (max)



6.7 Watt


Power consumption (Power over Ethernet (PoE))



5 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



0.3 kg


Product Depth



17.5 cm


Product Height



16.6 cm


Product Width



17.5 cm


Security



Alert notification type



E-mail


Anti-flicker



Yes


Intelligent Video Surveillance (IVS) system features



Defocus


IP address filtering



Yes


Password protection



Yes


Password protection type



User


Security algorithms



EAP-LEAP, EAP-TLS, HTTPS, SSL/TLS


Video motion detection



Yes


Storage



Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



256 MB


Maximum memory card size



128 GB


System requirements



Mac operating systems supported



Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave


Windows operating systems supported



Windows 10, Windows 7, Windows 8.1


Vendor information



Brand Name


Hanwha


Warranty



3 Year(s)


Video



Bit rate control



Constant Bit Rate (CBR)/Variable Bit Rate (VBR)


Flip & mirror



Yes


Frame rate



30 fps


Maximum resolution



1920 x 1080 Pixels


Noise reduction



Yes


Privacy masking



Yes


Supported graphics resolutions



640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)


Total megapixels



2 MP


Video compression formats



H.264, H.265, M-JPEG


Video formats supported



H.264, H.265, M-JPEG


Video streaming



Yes
