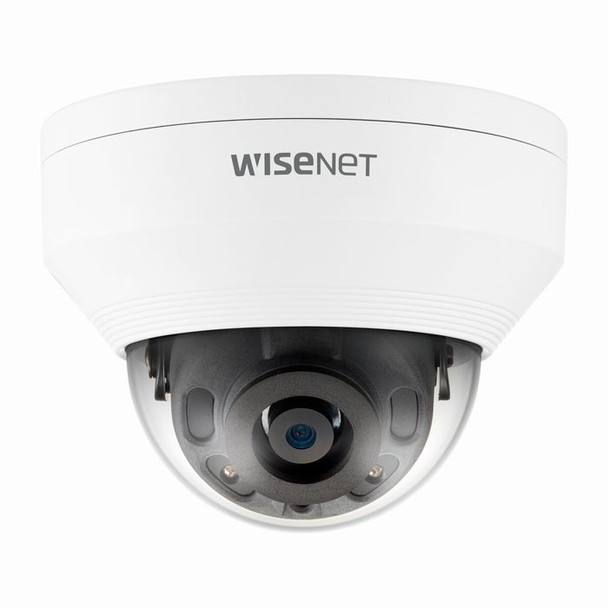

Hanwha QNV-7022R 4MP IR Vandal Dome QNV-7022R

Wisenet Q network IR outdoor vandal dome camera, 4MP @30fps, 3.6mm fixed lens (81�), triple codec H.265/H.264/MJPEG with WiseStream, Multiple streaming, 120dB WDR, True Day & Night (ICR), IR viewable length 25m, Motion detection, Tampering, Defocus detection, Hallway View, 1-way audio and microSD/SDHC/SDXC slot, LDC support (Lens Distortion Correction), IP66, IK10, PoE/12VDC

Audio



Audio formats supported



ADPCM, G.711, G.726


Sample rate



8 kHz


Voice codecs



G.711ulaw, G.726, G.726-32


Camera



Angle of rotation



350 �


Camera pan control



Yes


Camera shutter speed



1/5 - 1/12000 Second Second


Camera shutter type



Electronic


Camera tilt control



Yes


Lens viewing angle, diagonal



92 �


Lens viewing angle, horizontal



78.2 �


Lens viewing angle, vertical



41.2 �


Pan range



0 - 350 �


Tilt angle range



0 - 67 �


Viewing angle, diagonal



92 �


Viewing angle, horizontal



78.2 �


Viewing angle, vertical



41.2 �


White balance



ATW, AWC, Indoor, Manual, Outdoor


Design



Form factor



Dome


Housing material



Aluminium


IK code



IK10


International Protection (IP) code



IP66


Mounting type



Ceiling


Product colour



White


Protection features



Dust resistant, Vandal proof, Water resistant


Features



NDAA Compliance



Yes


Image sensor



Number of sensors



1


Optical sensor size



1/3 "


Sensor type



CMOS


Lens system



Detect distance



63 m


Fixed focal length



4 mm


Fixed focus



Yes


Focal length range



4 mm


Identify distance



6.3 m


Maximum aperture number



1.6


Number of lenses



1


Observe distance



25.2 m


Recognize distance



12.6 m


Network



Bluetooth



No


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.3af


Number of users



6 user(s)


Quality of Service (QoS) support



Yes


Streaming method



Multicast, Unicast


Supported network protocols



IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP


Wi-Fi



No


Night vision



Infra-red wavelength



850 nm


LED type



IR


Night vision



Yes


Night vision distance



25 m


Operational conditions



Operating relative humidity (H-H)



0 - 95 %


Operating temperature (T-T)



-40 - 55 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-40 - 60 �C


Package dimensions



Depth (package,cm)



16 cm


Gross Weight (Package, kg)



0.832 kg


Height (package,cm)



13.2 cm


Width (package,cm)



16 cm


Packaging content



Manual



Yes


Performance



Alarm input/output



Yes


Connectivity technology



Wired


Day/night mode



Yes


Infrared (IR) cut-off filter



Yes


Languages support



Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Swedish, Turkish


Number of languages



17


Placement supported



Outdoor


PTZ control



No


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Composite video out



1


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Microphone in



Yes


Power



DC output voltage



12


Power consumption (max)



10.7 Watt


Power consumption (Power over Ethernet (PoE))



8.1 Watt


Power consumption (typical)



6.5 Watt


Power source type



DC, PoE


Product dimensions



Net Weight (Product, kg)



0.707 kg


Product Height



9.17 cm


Security



Active tampering alarm



Yes


Alert notification type



E-mail


Anti-flicker



Yes


HTTPS encryption



Yes


Intelligent Video Surveillance (IVS) system features



Defocus


IP address filtering



Yes


Password protection



Yes


Password protection type



User


Security algorithms



EAP-LEAP, EAP-TLS, HTTPS, LEAP


Video motion detection



Yes


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



256 MB


Internal memory



512 MB


Maximum memory card size



128 GB


Vendor information



Brand Name


Hanwha


Warranty



5 Year(s)


Video



Back Light Compensation (BLC)



Yes


Bit rate control



Constant Bit Rate (CBR)/Variable Bit Rate (VBR)


Flip & mirror



Yes


Frame rate



30 fps


Maximum resolution



2560 x 1440 Pixels


Noise reduction



Yes


Privacy masking



Yes


Supported graphics resolutions



320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440


Total megapixels



4 MP


Video compression formats



H.264, H.265, M-JPEG


Video formats supported



H.264, H.265, M-JPEG


Video streaming



Yes


Weight & dimensions



Diameter



12.03 cm
