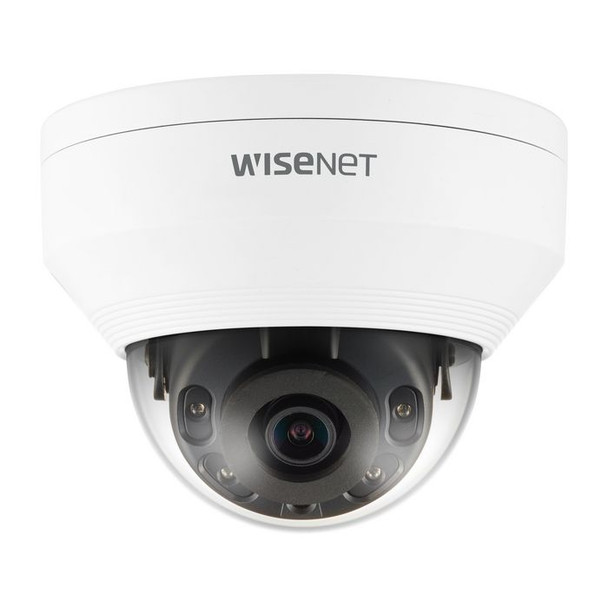

Hanwha QNV-8010R 5MP IR Outdoor Vandal Dome QNV-8010R

Wisenet Q network IR outdoor vandal dome camera, 5MP @30fps, 2.8mm fixed lens (104.7°), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, 120dB WDR, Auto Day & Night (ICR), IR viewable length 20m, Advanced Video Analytics, Hallway View, Motion detection, LDC (Lens Distortion Correction), Bi-directional audio and SD/SDHC/SDXC slot, CVBS for easy installation, IP66, IK10, PoE

Camera



Adjustment shutter speed



Manual


Camera shutter type



Electronic


Lens viewing angle, diagonal



136 °


Lens viewing angle, horizontal



104.7 °


Lens viewing angle, vertical



76.5 °


Minimum illumination



0.15 lx


Pan range



0 - 350 °


Tilt angle range



0 - 67 °


Viewing angle, diagonal



136 °


Viewing angle, horizontal



104.7 °


Viewing angle, vertical



76.5 °


White balance



ATW, AWC, Indoor, Manual, Outdoor


Design



Form factor



Dome


Housing material



Aluminium


IK code



IK10


International Protection (IP) code



IP66


LED indicators



Y, Yes


Mounting type



Ceiling


Product colour



White


Protection features



Vandal proof


Features



NDAA Compliance



Yes


Image sensor



Number of effective pixels (H x V)



2592 x 1944 Pixels


Optical sensor size



1/2.8 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Fixed focal length



2.8 mm


Focal length range



2.8 mm


Maximum aperture number



2


Network



Bluetooth



No


Ethernet interface type



10 Gigabit Ethernet, 100 Gigabit Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.1x


Number of users



6 user(s)


Quality of Service (QoS) support



Yes


Streaming method



Multicast, Unicast


Supported network protocols



IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP


Wi-Fi



No


Night vision



Infra-red wavelength



850 nm


LED type



IR


Night vision



Yes


Night vision distance



20 m


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



-30 - 55 °C


Storage relative humidity (H-H)



0 - 90 %


Storage temperature (T-T)



-30 - 60 °C


Package dimensions



Depth (package,cm)



17 cm


Height (package,cm)



14 cm


Width (package,cm)



17 cm


Packaging content



Number of cameras



1


Performance



Alarm input/output



Yes


Connectivity technology



Wired


Day/night mode



Yes


Languages support



Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish


Placement supported



Outdoor


PTZ control



No


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



Power consumption (max)



7.5 Watt


Power consumption (typical)



5.8 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



0.42 kg


Product Depth



17 cm


Product Height



9.17 cm


Product Width



12.03 cm


Security



Active tampering alarm



Yes


Alert notification type



E-mail


IP address filtering



Yes


Video motion detection



Yes


Storage



Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Maximum memory card size



128 GB


System requirements



Mac operating systems supported



Y, Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


Hanwha


Warranty



5 Year(s)


Video



Back Light Compensation (BLC)



Yes


Bit rate control



Constant Bit Rate (CBR)/Variable Bit Rate (VBR)


Flip & mirror



Yes


Gain control type



Manual


Maximum resolution



2592 x 1944 Pixels


Noise reduction



Yes


Privacy masking



Yes


Supported graphics resolutions



640 x 360, 640 x 480 (VGA), 720 x 480, 768 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 960, 1920 x 1080 (HD 1080), 2592 x 1944


Total megapixels



5 MP


Video compression formats



H.264, H.265, M-JPEG


Video streaming



Yes


Weight & dimensions



Diameter



12.03 cm
