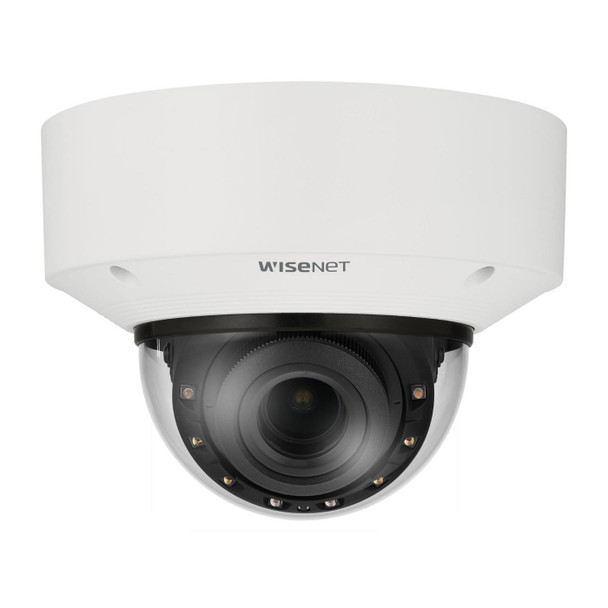

Hanwha XND-C7083RV 4MP AI IR Dome Camera XND-C7083RV

Wisenet X powered by Wisenet 7 AI network IR indoor vandal dome camera,4MP @60fps, 2.8 ~ 10.0mm motorized vari-focal lens (3.6x) (109.7�~30.4�), triple codec H.265/H.264/MJPEG with WiseStream II, Multiple streaming, 120dB WDR, True Day & Night (ICR), High Powered IR LEDs with IR viewable length 40m, Analytics events based on AI engine (NPU) : Object detection (Person /Face/Vehicle � car, truck, bus, bicycle, motorcycle/Licence plate),IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion),Analytics events : Defocus detection, Motion detection, Tampering, Fog detection,, HLC, Digital Image Stabilization with Gyro sensor, Bi-directional audio and single microSD/SDHC/SDXC slot, ONVIF S/G/T, USB port for easy installation, IP52, IK10, PoE/12VDC, white skins included

Camera



Lens viewing angle, diagonal



131.3 �


Lens viewing angle, horizontal



109.7 �


Lens viewing angle, vertical



60.8 �


Pan range



0 - 360 �


Tilt angle range



-45 - 75 �


Viewing angle, diagonal



131.3 �


Viewing angle, horizontal



109.7 �


Viewing angle, vertical



60.8 �


White balance



ATW, AWC, Indoor, Manual, Outdoor


Design



Form factor



Dome


IK code



IK10


International Protection (IP) code



IP66, IP67


Mounting type



Ceiling


Product colour



White


Protection features



Dust resistant, Vandal proof, Water resistant


Features



NDAA Compliance



Yes


Image sensor



Optical sensor size



1/2.8 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Focal length range



2.8 - 10 mm


Number of lenses



1


Zoom capability



Yes


Network



Bluetooth



No


Ethernet LAN



Yes


Streaming method



Multicast, Unicast


Wi-Fi



No


Night vision



LED type



IR


Night vision



Yes


Night vision distance



40 m


Operational conditions



Operating temperature (T-T)



-50 - 55 �C


Storage temperature (T-T)



-50 - 60 �C


Package dimensions



Depth (package,cm)



21.9 cm


Gross Weight (Package, kg)



1.75 kg


Height (package,cm)



19.5 cm


Width (package,cm)



21.9 cm


Packaging content



Number of cameras



1


Performance



Connectivity technology



Wired


Day/night mode



Yes


Dynamic range



120 dB


Placement supported



Indoor & outdoor


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



DC output voltage



12


Power consumption (max)



13.2 Watt


Power consumption (Power over Ethernet (PoE))



12.95 Watt


Power consumption (typical)



10.8 Watt


Power source type



DC, PoE


Product dimensions



Net Weight (Product, kg)



1.35 kg


Product Depth



16 cm


Product Height



11.8 cm


Product Width



16 cm


Security



Anti-flicker



Yes


IP address filtering



Yes


Security algorithms



EAP-LEAP, EAP-PEAP, EAP-TLS, HTTPS


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



512 MB


Internal memory



2000 MB


Maximum memory card size



512 GB


Vendor information



Brand Name


Hanwha


Warranty



5 Year(s)


Video



Frame rate



60 fps


Image stabilizer



Yes


Maximum resolution



2592 x 1520 Pixels


Noise reduction



Yes


Total megapixels



4 MP


Video recording



Yes


Video streaming



Yes


Weight & dimensions



Diameter



16 cm
