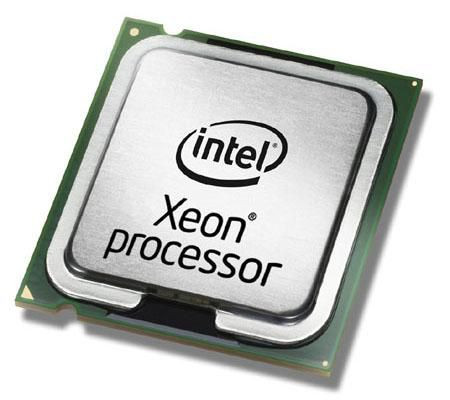

Hewlett Packard Enterprise 433522-B21-RFB Processor x1.8/5320 Q DL380 G5 433522-B21-RFB

Maximize Performance. Minimize Power. Automatically.
As data centers reach the upper limits of their power and cooling capacity, efficiency has become the focus of extending the life of existing data centers and designing new ones. As part of these efforts, IT needs to refresh existing infrastructure with standard enterprise servers that deliver more performance and scalability, more efficiently. The Intel� Xeon� processor E5000 series automatically regulates power consumption and intelligently adjusts server performance according to your application needs, maximizing both energy efficiency and performance. The secret to this compelling combination is Intel�s new 32nm Nehalem microarchitecture. Featuring Intel� Intelligent Power Technology that automatically shifts the CPU and memory into the lowest available power state, while delivering the performance you need, the Intel Xeon processor 5600 series with Intel Microarchitecture Nehalem delivers the same performance as previous-generation servers but uses up to 30 percent less power. And you can achieve up to a 95 percent reduction in energy costs when consolidating your single-core infrastructure with a new infrastructure built on Intel Xeon processor E5000.
This groundbreaking intelligent server technology features:- Intel�s new 32nm Microarchitecture Nehalem built with second-generation high-k and metal gate transistor technology.
- Intelligent Performance that automatically optimizes performance to fit business and application requirements and delivers up to 40 percent more performance per watt than Intel� Xeon� processor E5000 series.
- Automated Energy Efficiency that scales energy usage to the workload to achieve optimal performance/watt and with new 40 Watt options and lower power DDR3 memory, you can lower your energy costs even further.
- Flexible virtualization that offers best-in-class performance and manageability in virtualized environments to improve IT infrastructure and enable up to 15:1 consolidation over two socket, single-core servers.

Features



Execute Disable Bit



Yes


Market segment



Server


Number of Processing Die Transistors



582 M


Processing Die size



286 mm�


Thermal Monitoring Technologies



Yes


Graphics



On-board graphics card



No


Operational conditions



Tcase



66 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-x


Package dimensions



Gross Weight (Package, kg)



0.6 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



1.0000 - 1.5000 V


Processor



Component for



Server/workstation


Processor base frequency



1.86 GHz


Processor cache



8 MB


Processor cache type



L2


Processor cores



4


Processor family



Intel� Xeon� 5000 Sequence


Processor frequency



1.86 GHz


Processor front side bus



1066 MHz


Processor lithography



65 nm


Processor model



E5320


Processor operating modes



64-bit


Processor socket



LGA 771 (Socket J)


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



1.0000 - 1.5000 V


Processor special features



Intel Virtualization Technology (VT-x)



Yes


Product dimensions



Net Weight (Product, kg)



0.5 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Homepage



http://welcome.hp.com/country/us/en/prodserv/printer-computer-accessories.html


Warranty



1 Year(s)


Weight & dimensions



Processor package size



3.75 cm
