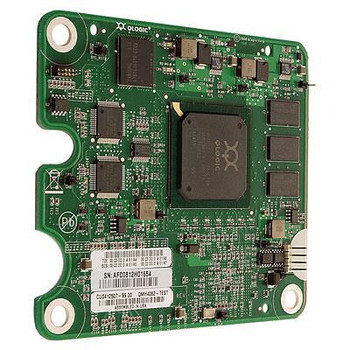

Hewlett Packard Enterprise 488074-B22-RFB BLc QLogic iSCSI Dp Adpter 488074-B22-RFB

The QLogic QMH4062 1GbE iSCSI Adapter for c-Class BladeSystem QMH4062 represents the most advanced iSCSI initiator technology available for blades. This dual port, IPv6 compliant Gigabit Ethernet iSCSI initiator mezzanine is optimized for high performance iSCSI traffic from an HP BladeSystem c-Class ProLiant server. It is an alternative to less integrated Ethernet iSCSI offerings and often more expensive non TCP/IP implementations.; Designed for ultimate performance, the QMH4062 provides offloading of iSCSI. The QMH4062 supports VMware allowing users the flexibility of ESX 4.0 and ESXi 4.0 host booting from an iSCSI SAN. The QMH4062 is IPv6 compliant card and can provide a c-Class end-to-end IPv6 solution when using either the Cisco Catalyst Blade Switch 3120 with IPv6 upgrade option or the Ethernet Pass-Thru.

- Performance.
QLogic QMH4062 1GbE iSCSI Adapter for c-Class BladeSystem enhances server performance and improves network communication efficiency. Increases flexibility and simplifies your IT infrastructure. Quickly responds to changing business needs through dynamic resource scaling and virtual presence and control.
- Flexibility and simplification.
- Delivers scalable connectivity.

Design



Certification



FCC Class A, FCC (CFR 47 part 15), ICES-003, CSA60950, VCCI, EMC, ACA, AS/NZS354 /EN55022:1998, EN55024:1998, CE, EN55022:1998 (CISPR 22), EN55024:1998, IEC60950:1999 (EN60950:2000)


Internal



Yes


RoHS compliance



Yes


Safety



UL, EN 60590


Network



Flow control support



Yes


Full duplex



Yes


Maximum data transfer rate



4000 Mbit/s


Networking standards



IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



10 - 35 °C


Storage relative humidity (H-H)



10 - 90 %


Storage temperature (T-T)



-40 - 70 °C


Other features



Data transfer rate



1 Gbit/s


Dimensions (W x D x H) (imperial)



2.25 x 7.63 x 9.75 "


Flow control support



Yes


Networking features



Gigabit Ethernet


Ports quantity



2


Power supply



12 Watt


Supported protocols



iSCSI TCP/IP CHAP iSNS


Weight (imperial)



1 lbs


Package dimensions



Gross Weight (Package, kg)



1 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Host interface



PCI Express


Interface



Ethernet


Product dimensions



Net Weight (Product, kg)



0.9 kg


Sustainability



Sustainability certificates



RoHS


System requirements



Compatible operating systems



Windows 2003/2008 (32-bit, 64-bit) Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESX Server 4.0 ESXi 4.0


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
