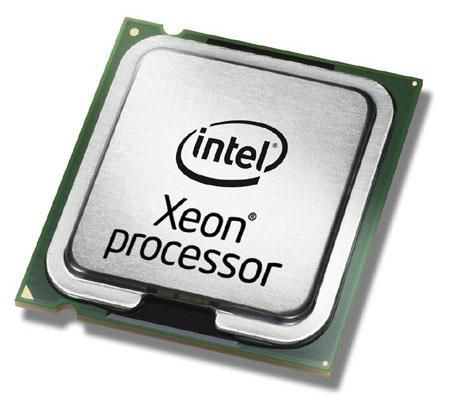

Hewlett Packard Enterprise 499047-B21-RFB E5450 3.00 GHz DL180G5 499047-B21-RFB

Intel Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel Demand Based Switching is a power-management technology in which the applied voltage and clock speed of a microprocessor are kept at the minimum necessary levels until more processing power is required. This technology was introduced as Intel SpeedStep Technology in the server marketplace.

Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits

Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Features



Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Number of Processing Die Transistors



820 M


Processing Die size



214 mm²


Thermal Monitoring Technologies



Yes


Graphics



On-board graphics card



No


Operational conditions



Tcase



67 °C


Other features



Intel® Virtualization Technology (Intel® VT)



VT-x


Package dimensions



Gross Weight (Package, kg)



1 kg


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.85 - 1.35 V


Processor



Component for



Server/workstation


FSB Parity



Yes


Processor base frequency



3 GHz


Processor cache



12 MB


Processor cache type



L2


Processor cores



4


Processor family



Intel® Xeon® 5000 Sequence


Processor frequency



3 GHz


Processor front side bus



1333 MHz


Processor lithography



45 nm


Processor model



E5450


Processor operating modes



64-bit


Processor socket



LGA 771 (Socket J)


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.85 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Virtualization Technology (VT-x)



Yes


Product dimensions



Net Weight (Product, kg)



0.9 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)


Weight & dimensions



Processor package size



3.75 cm
