Hewlett Packard Enterprise 539857-B21-RFB BLC NC542M 10GBE KR 539857-B21-RFB

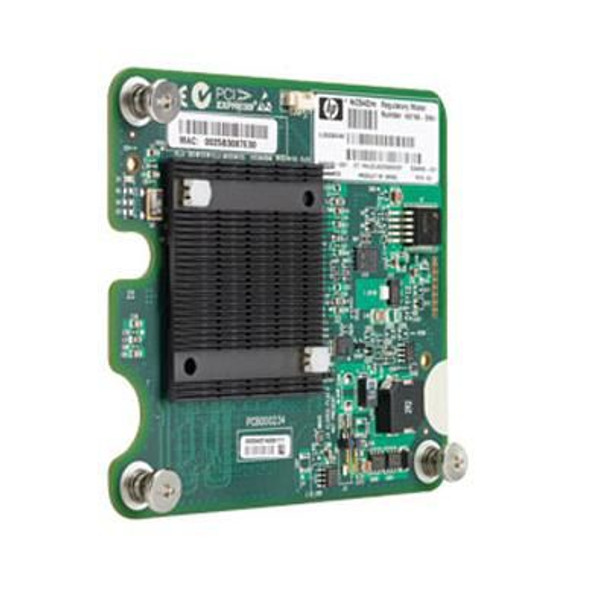

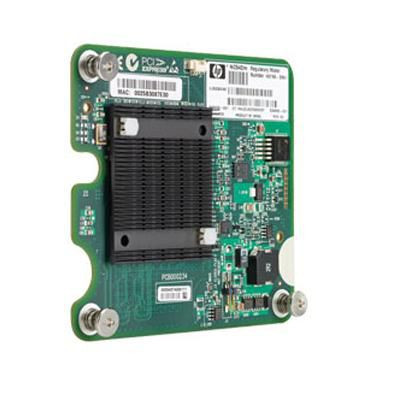

The HP NC542m Dual Port Flex-10 10GbE BLc Adapter is the newest member of the c-Class 10Gb adapter portfolio and the most powerful. Based on the latest version of the Mellanox ConnectX family, the HP NC542m delivers the highest overall throughput and the lowest latency of all our current 10GbE adapters. Perfect for mission critical applications such as financial services and virtualized environments, the adapter works with all BladeSystem c-Class G6 servers. When paired with the new HP 6120XG Blade Switch, the combination provides a comprehensive high bandwidth, high performance interface between the server edge and the network

- Future Support for Mellanox "LLE" technology for extremely low latency
- TCP/UDP/IP stateless offload in hardware
- 40GbE (full duplex) to each server per adapter. Up to 3 adapters per FH server!

Design



Chipset



Mellanox ConnectX


Internal



Yes


Product colour



Black, Green, Silver


Network



Ethernet LAN



Yes


Full duplex



Yes


Maximum data transfer rate



20000 Mbit/s


Networking standards



IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 55 �C


Other features



Chipset



Mellanox ConnectX


Data transfer rate



20 Gbit/s


Supported protocols



Ethernet


Package dimensions



Gross Weight (Package, kg)



1 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Host interface



PC Card


Interface



Ethernet


Product dimensions



Net Weight (Product, kg)



0.9 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
