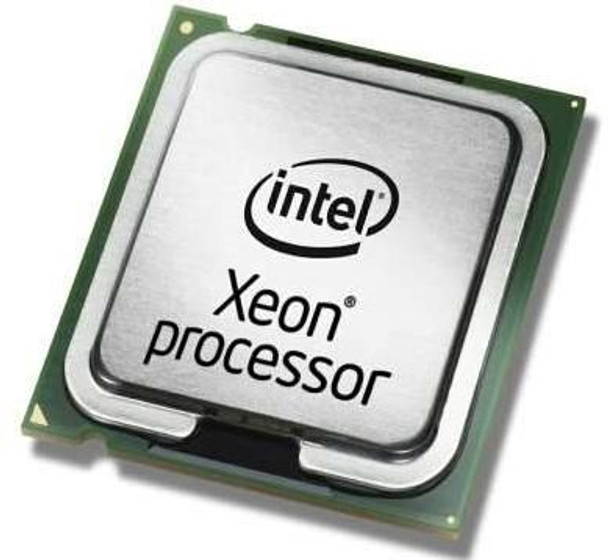

Hewlett Packard Enterprise 590326-001-RFB SPS - PROC XE LFD QC X3430 2.4 590326-001-RFB

The Intel� Xeon� processor 3000 series-based platforms unleash the computing power of Intel� Xeon� processors. Based on the next-generation Intel� microarchitecture, codenamed Nehalem, these processors provide your business with exceptional performance and power efficiency at a very affordable cost.

The Intel Xeon 3000 processor-based servers protect critical business information and offer the performance and headroom to make employees and businesses more productive, making them ideal for small and medium business owners looking for ways to support rapid business growth on small technology budgets.

Designed for needs of entry-level servers, the Intel� Xeon� processor 3400 series adapts to application behavior by automatically adjusting processing power to deliver maximum performance, protecting valuable assets from data corruption and loss, improving productivity with business growth.

DDR3 memory support up to 1333 MHz
- Supports up to thirty-two GB dual-channel DDR3 Error Correcting Code (ECC) memory which checks and corrects system memory errors;
- Flexible memory configuration options with support for up to four non-ECC or ECC unregistered DIMMs or up to six ECC Registered DIMMs.

Integrated PCI-Express 2.0 I/O
- Integrated serial I/O technology provides a direct connection between the processor and PCI Express component/adapters with bandwidth up to 8 GB/s on PCI-Express 2.0 x16 interface;
- The PCI-Express 2.0 x16 interface can be bifurcated to either two x8 PCI Express or four x4 PCI-Express interfaces for maximum design flexibility.

PCI-Express offers higher bandwidth, lower latency, and fewer I/O bottlenecks than PCI and PCI-X.

Features



CPU configuration (max)



1


Embedded options available



Yes


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Maximum number of PCI Express lanes



1


Number of Processing Die Transistors



774 M


PCI Express configurations



1x16, 2x8, 4x4


PCI Express slots version



2.0


Physical Address Extension (PAE)



Yes


Processing Die size



296 mm�


Supported instruction sets



SSE4.2


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



32 GB


Memory channels



Dual-channel


Memory clock speeds supported by processor



800, 1066, 1333


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



72.7 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-d, VT-x


Package dimensions



Depth (package,cm)



14 cm


Gross Weight (Package, kg)



1 kg


Height (package,cm)



3 cm


Width (package,cm)



4.5 cm


Power



Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.65 - 1.4 V


Processor



Box



No


Bus type



DMI


Compatible chipsets



Intel� 3400, Intel� 3420, Intel� 3450


Component for



Server/workstation


Memory bandwidth supported by processor (max)



21 GB/s


Processor base frequency



2.4 GHz


Processor boost frequency



2.8 GHz


Processor cache



8 MB


Processor cache type



L3


Processor cores



4


Processor family



Intel� Xeon� 3000 Sequence


Processor frequency



2.4 GHz


Processor lithography



45 nm


Processor model



X3430


Processor operating modes



64-bit


Processor socket



LGA 1156 (Socket H)


Processor threads



4


System bus rate



2.5 GT/s


Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.65 - 1.4 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� Smart Cache



Yes


Intel� Turbo Boost Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.9 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
