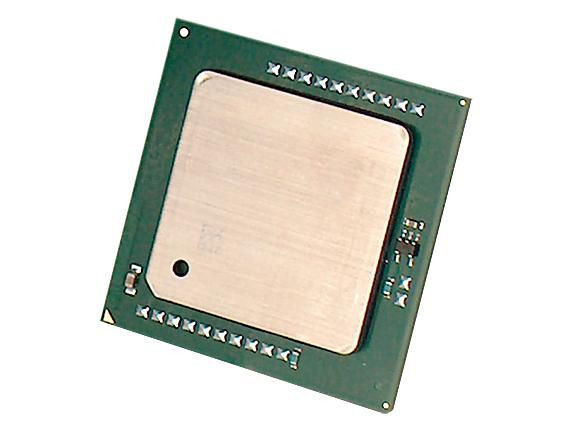

Hewlett Packard Enterprise 593824-B21-RFB DL380G7 X5650M FIO Perf Pack 593824-B21-RFB

Intel Virtualization Technology (VT-x)

Intel Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel 64

Intel 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Features



Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Supported instruction sets



SSE4.2


Graphics



On-board graphics card



No


Memory



ECC



Yes


Maximum internal memory supported by processor



288 GB


Memory channels



Triple-channel


Memory clock speeds supported by processor



800, 1066, 1333


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



81.3 °C


Other features



Intel® Virtualization Technology (Intel® VT)



VT-d, VT-x


Package dimensions



Gross Weight (Package, kg)



1 kg


Power



Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.75 - 1.35 V


Processor



Bus type



QPI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



32 GB/s


Number of QPI links



2


Processor base frequency



2.66 GHz


Processor boost frequency



3.06 GHz


Processor cache



12 MB


Processor cache type



L3


Processor cores



6


Processor family



Intel® Xeon® 5000 Sequence


Processor frequency



2.66 GHz


Processor lithography



32 nm


Processor model



X5650


Processor operating modes



32-bit, 64-bit


Processor socket



Socket B (LGA 1366)


Processor threads



12


System bus rate



6.4 GT/s


Thermal Design Power (TDP)



95 Watt


VID Voltage Range



0.75 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Trusted Execution Technology



Yes


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel® AES New Instructions (Intel® AES-NI)



Yes


Intel® Hyper Threading Technology (Intel® HT Technology)



Yes


Intel® Smart Cache



Yes


Intel® Turbo Boost Technology



Yes


Product dimensions



Net Weight (Product, kg)



0.9 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



1 Year(s)
