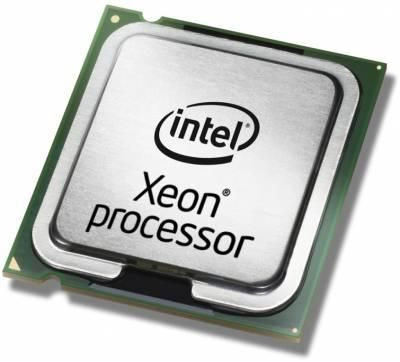

Hewlett Packard Enterprise 594889-001 Processor 2.0 GHz 594889-001

Intel Virtualization Technology (VT-x) allows one hardware platform to function as multiple �virtual� platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel Demand Based Switching is a power-management technology in which the applied voltage and clock speed of a microprocessor are kept at the minimum necessary levels until more processing power is required. This technology was introduced as Intel SpeedStep Technology in the server marketplace.

Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Intel VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Features



Embedded options available



No


Execute Disable Bit



Yes


Idle States



Yes


Market segment



Server


Thermal Monitoring Technologies



No


Graphics



On-board graphics card



No


Memory



ECC



Yes


Memory channels



Triple-channel


Memory clock speeds supported by processor



800


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



76 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-d, VT-x


Package dimensions



Depth (package,cm)



19.1 cm


Gross Weight (Package, kg)



0.4 kg


Height (package,cm)



6.7 cm


Width (package,cm)



16.1 cm


Power



Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.75 - 1.35 V


Processor



Bus type



QPI


Component for



Server/workstation


Memory bandwidth supported by processor (max)



19.2 GB/s


Number of QPI links



2


Processor base frequency



2 GHz


Processor cache



4 MB


Processor cache type



L3


Processor cores



2


Processor family



Intel� Xeon� 5000 Sequence


Processor frequency



2 GHz


Processor lithography



45 nm


Processor model



E5503


Processor operating modes



64-bit


Processor socket



Socket B (LGA 1366)


Processor threads



2


Stepping



D0


System bus rate



4.8 GT/s


Thermal Design Power (TDP)



80 Watt


VID Voltage Range



0.75 - 1.35 V


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



Yes


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



No


Intel� Hyper Threading Technology (Intel� HT Technology)



No


Intel� Smart Cache



Yes


Intel� Turbo Boost Technology



No


Product dimensions



Net Weight (Product, kg)



0.22 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



3 Year(s)
