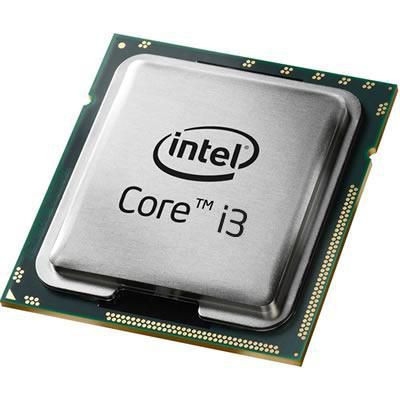

Hewlett Packard Enterprise 600134-001 Ckd I3 540 73W 3.06G 4M C 2 600134-001

As the first level in Intel's new processor family, the previous generation Intel� Core� i3 processor is the perfect entry point for a fast, responsive PC experience. This processor comes equipped with Intel� HD Graphics, an advanced video engine that delivers smooth, high-quality HD video playback, and advanced 3D capabilities, providing an ideal graphics solution for everyday computing.
A smart choice for home and office, the Intel Core i3 processor also features Intel� Hyper-Threading Technology (Intel� HT Technology),� which enables each core of your processor to work on two tasks at the same time, delivering the performance you need for smart multitasking.

32nm dual-core processing
runs two independent processor cores in one physical package at the same frequency.

Intel� HT Technology
delivers two processing threads per physical core for a total of four threads for massive computational throughput. This 4-way multi-task processing allows each core of your processor to work on two tasks at the same time.

Intel� Smart Cache
is shared cache dynamically allocated to each processor core, based on workload. This efficient, dual-core-optimized implementation increases the probability that each core can access data from the fast cache, significantly reducing latency to frequently used data and improving performance.

Intel� HD Graphics
provides superb visual performance for sharper images, richer color, and life-like video and audio. Available on select models of the Intel� Core� processor family.

Features



Embedded options available



Yes


Execute Disable Bit



Yes


Graphics & IMC Die Size



114 mm�


Graphics & IMC lithography



45 nm


Idle States



Yes


Maximum number of PCI Express lanes



16


Number of Graphics & IMC Die Transistors



177 M


Number of Processing Die Transistors



382 M


PCI Express configurations



1x16, 2x8


PCI Express slots version



2.0


Processing Die size



81 mm�


Supported instruction sets



SSE4.2


Thermal Monitoring Technologies



No


Graphics



Number of displays supported (on-board graphics)



2


On-board graphics card



Yes


On-board graphics card base frequency



733 MHz


On-board graphics card model



Intel� HD Graphics


Memory



Maximum internal memory supported by processor



16 GB


Memory channels



Dual-channel


Memory clock speeds supported by processor



1066, 1333


Memory types supported by processor



DDR3-SDRAM


Operational conditions



Tcase



72.6 �C


Other features



Intel� Virtualization Technology (Intel� VT)



VT-x


Package dimensions



Depth (package,cm)



19.5 cm


Gross Weight (Package, kg)



0.3 kg


Height (package,cm)



6 cm


Width (package,cm)



16.5 cm


Power



Thermal Design Power (TDP)



73 Watt


Processor



Box



No


Memory bandwidth supported by processor (max)



21 GB/s


Processor base frequency



3.06 GHz


Processor cache



4 MB


Processor cache type



L3


Processor cores



2


Processor family



Intel� Core� i3


Processor frequency



3.06 GHz


Processor generation



Intel� Core� i3


Processor lithography



32 nm


Processor model



i3-540


Processor operating modes



64-bit


Processor socket



LGA 1156 (Socket H)


Processor threads



4


Stepping



C2


System bus rate



2.5 GT/s


Thermal Design Power (TDP)



73 Watt


Processor special features



Enhanced Intel SpeedStep Technology



Yes


Intel Demand Based Switching



No


Intel FDI Technology



Yes


Intel Trusted Execution Technology



No


Intel Virtualization Technology (VT-x)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Intel� AES New Instructions (Intel� AES-NI)



No


Intel� Clear Video HD Technology (Intel� CVT HD)



Yes


Intel� Hyper Threading Technology (Intel� HT Technology)



Yes


Intel� Smart Cache



Yes


Intel� Turbo Boost Technology



No


Intel� vPro� Platform Eligibility



No


Intel� vPro� Technology



No


Product dimensions



Net Weight (Product, kg)



0.26 kg


Vendor information



Brand Name


Hewlett Packard Enterprise


Warranty



3 Year(s)
